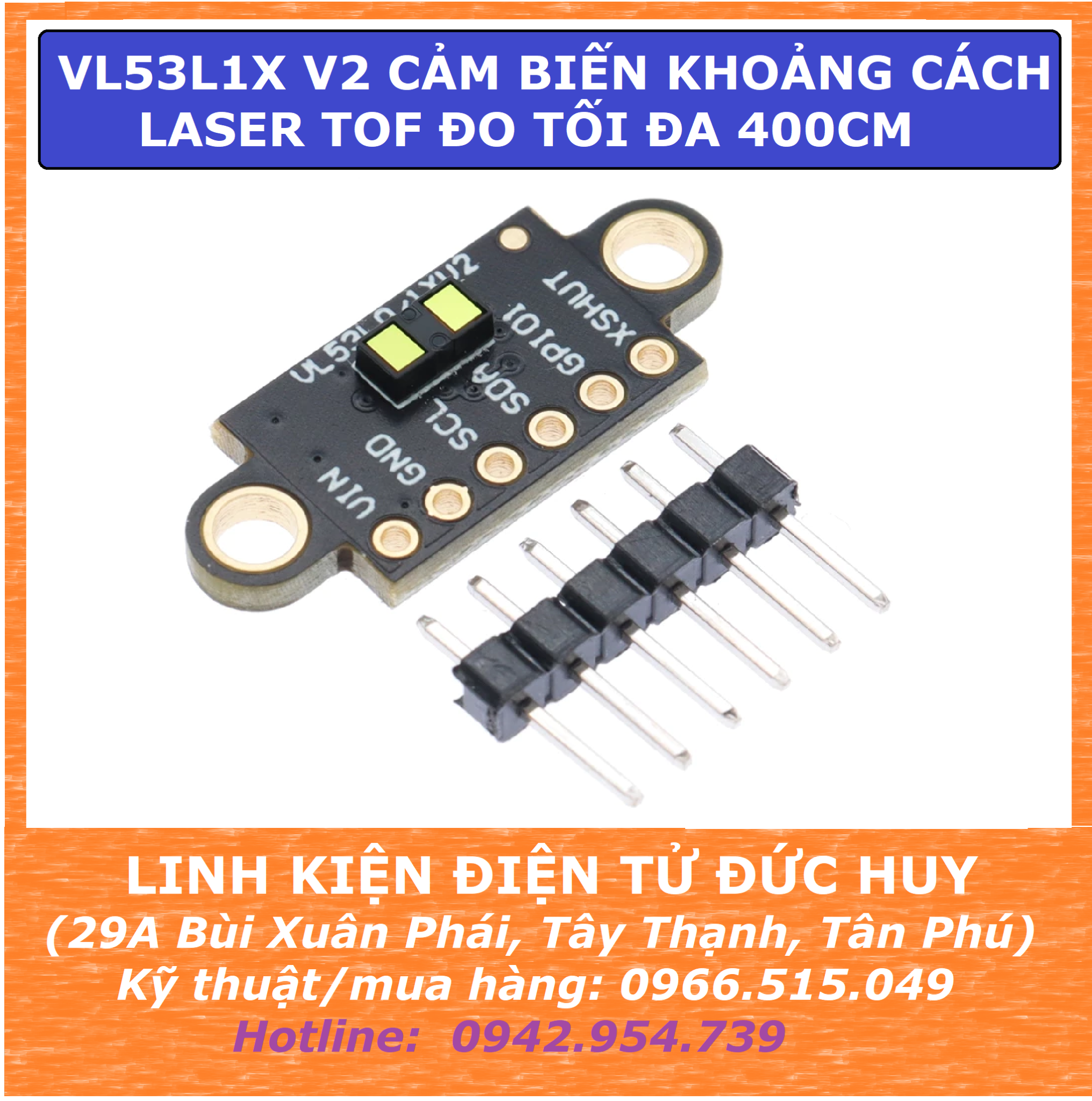

VL53L1X V2 cảm biến khoảng cách laser TOF đo tối đa 400cm

#include "Adafruit_VL53L1X.h"

#define IRQ_PIN 2

#define XSHUT_PIN 3

Adafruit_VL53L1X vl53 = Adafruit_VL53L1X(XSHUT_PIN, IRQ_PIN);

void setup() {

  Serial.begin(115200);

  while (!Serial) delay(10);

  Serial.println(F("Adafruit VL53L1X sensor demo"));

  Wire.begin();

  if (! vl53.begin(0x29, &Wire)) {

    Serial.print(F("Error on init of VL sensor: "));

    Serial.println(vl53.vl_status);

    while (1)       delay(10);

  }

  Serial.println(F("VL53L1X sensor OK!"));

  Serial.print(F("Sensor ID: 0x"));

  Serial.println(vl53.sensorID(), HEX);

  if (! vl53.startRanging()) {

    Serial.print(F("Couldn't start ranging: "));

    Serial.println(vl53.vl_status);

    while (1)       delay(10);

  }

  Serial.println(F("Ranging started"));

  vl53.setTimingBudget(50);

  Serial.print(F("Timing budget (ms): "));

  Serial.println(vl53.getTimingBudget());

}

void loop() {

  int16_t distance;

  if (vl53.dataReady()) {

    distance = vl53.distance();

    if (distance == -1) {

      Serial.print(F("Couldn't get distance: "));

      Serial.println(vl53.vl_status);

      return;

    }

    Serial.print(F("Distance: "));

    Serial.print(distance);

    Serial.println(" mm");

    vl53.clearInterrupt();

  }

}
