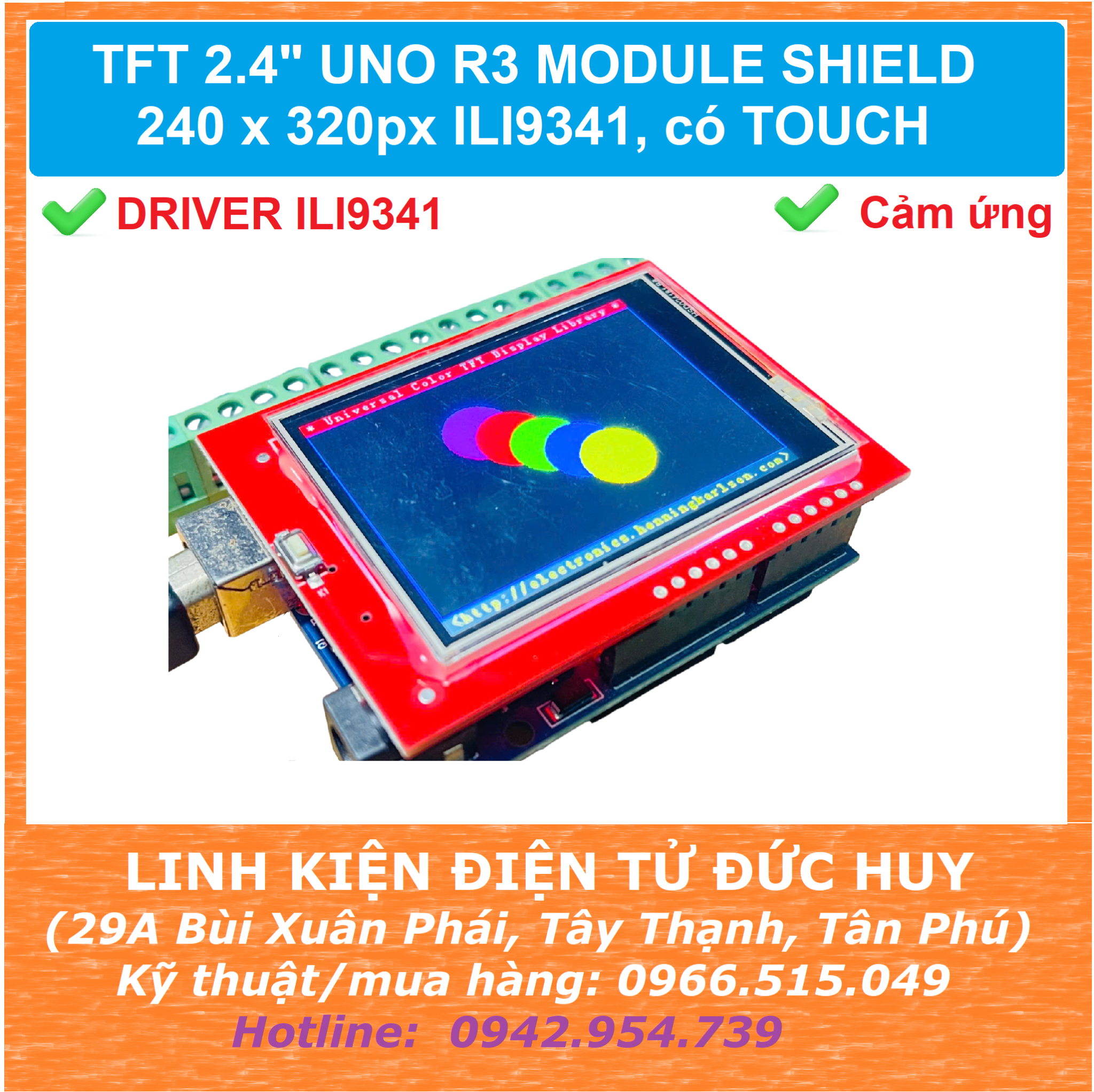

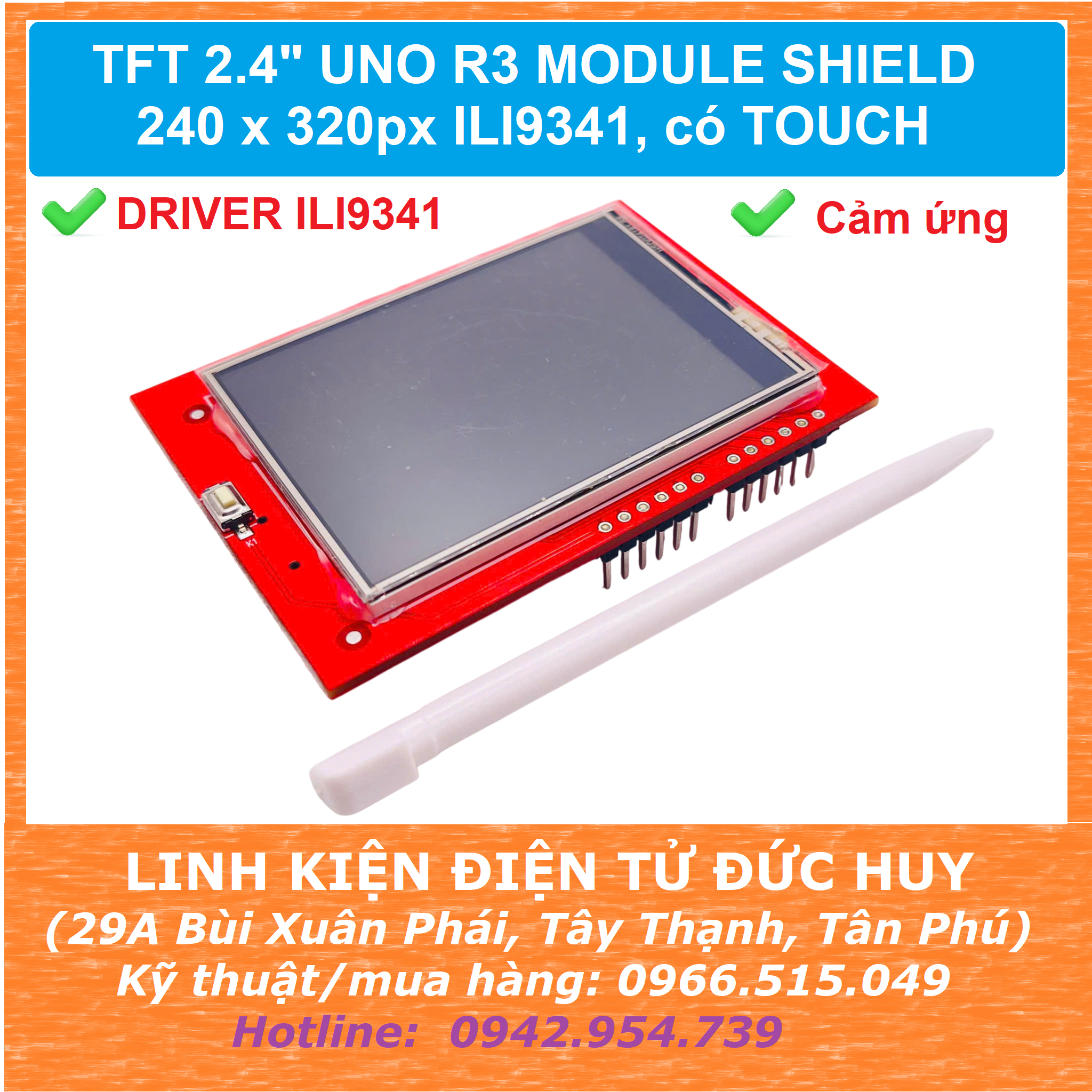

TFT 2.4" UNO MODULE SHIELD 240 x 320px ILI9341, có TOUCH

// UTFT_Demo_320x240 (C)2012 uCtronics

// web: http://www.uctronics.com

// UTFT_Demo_320x240 is derived from

// UTFT_Demo_320x240 (C)2010 Henning Karlsen

// web: http://www.henningkarlsen.com/electronics

// to fit for our 3.2 inch TFT LCD shield for Arduino/Maple/Chipkit

//

// This program is a demo of how to use most of the functions

// of the library with a supported display modules.

//

// This demo was made for modules with a screen resolution

// of 320x240 pixels.

//

// This program requires the UTFT library (8bit mode)

// and the code is compatible with both UNO and Mega board.

// No code modification required.

//

// if I want to use a GLUE class that implements the UTFT API

// with the Adafruit classes,   I MUST include those headers

// because the Arduino Java does not look at nested includes !

#include <Adafruit_GFX.h>

//#include <Adafruit_TFTLCD.h>     // this header is not needed

#include <UTFTGLUE.h>              // class methods are in here

//#include <Fonts/FreeSans7pt7b.h>

//UTFTGLUE myGLCD;                         // use for default shield

//UTFTGLUE myGLCD(0x9320,A2,A1,A3,A4,A0);

//UTFTGLUE myGLCD(0x9325,A2,A1,A3,A4,A0);

//UTFTGLUE myGLCD(0x7783,A2,A1,A3,A4,A0);

//UTFTGLUE myGLCD(0x1289,A1,A2,A0,0,A3);    // this might choose the pins

UTFTGLUE myGLCD(0x0154,A2,A1,A3,A4,A0);

/*

#include <UTFT.h>

//#include <SD.h>

//UTFT myGLCD(ILI9325C,A2,A1,A3,A4);    // Remember to change the model parameter to suit your display module!

//UTFT myGLCD(ILI9325D_8,A2,A1,A3,A4);    // Remember to change the model parameter to suit your display module!

UTFT myGLCD(SSD1289_8,A1,A2,A0,A3);    // Remember to change the model parameter to suit your display module!

*/

// Uncomment the next line for Arduino 2009/Uno

// UTFT(byte model, int RS, int WR,int CS,int RD)

//UTFT myGLCD(ILI9325C,A2,A1,A3,A0);    // Remember to change the model parameter to suit your display module!

//Adafruit_UTFT myGLCD;

// Declare which fonts we will be using

extern uint8_t FreeSerif9pt7b[];

void setup()

{

  randomSeed(analogRead(0));

    pinMode(A0, OUTPUT);

    digitalWrite(A0, HIGH);

// Setup the LCD

  myGLCD.InitLCD();

  myGLCD.setFont(SmallFont);

}

void loop()

{

  int buf[318];

  int x, x2;

  int y, y2;

  int r;

// Clear the screen and draw the frame

  myGLCD.clrScr();

  myGLCD.setColor(255, 0, 0);

  myGLCD.fillRect(0, 0, 319, 13);

  myGLCD.setColor(64, 64, 64);

  myGLCD.fillRect(0, 226, 319, 239);

  myGLCD.setColor(255, 255, 255);

  myGLCD.setBackColor(255, 0, 0);

  myGLCD.print("* Universal Color TFT Display Library *", CENTER, 1);

  myGLCD.setBackColor(64, 64, 64);

  myGLCD.setColor(255,255,0);

  myGLCD.print("<http://electronics.henningkarlsen.com>", CENTER, 227);

  myGLCD.setColor(0, 0, 255);

  myGLCD.drawRect(0, 14, 319, 225);

// Draw crosshairs

  myGLCD.setColor(0, 0, 255);

  myGLCD.setBackColor(0, 0, 0);

  myGLCD.drawLine(159, 15, 159, 224);

  myGLCD.drawLine(1, 119, 318, 119);

  for (int i=9; i<310; i+=10)

    myGLCD.drawLine(i, 117, i, 121);

  for (int i=19; i<220; i+=10)

    myGLCD.drawLine(157, i, 161, i);

// Draw sin-, cos- and tan-lines

  myGLCD.setColor(0,255,255);

  myGLCD.print("Sin", 5, 15);

  for (int i=1; i<318; i++)

  {

    myGLCD.drawPixel(i,119+(sin(((i*1.13)*3.14)/180)*95));

  }

  myGLCD.setColor(255,0,0);

  myGLCD.print("Cos", 5, 27);

  for (int i=1; i<318; i++)

  {

    myGLCD.drawPixel(i,119+(cos(((i*1.13)*3.14)/180)*95));

  }

  myGLCD.setColor(255,255,0);

  myGLCD.print("Tan", 5, 39);

  for (int i=1; i<318; i++)

  {

    myGLCD.drawPixel(i,119+(tan(((i*1.13)*3.14)/180)));

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

  myGLCD.setColor(0, 0, 255);

  myGLCD.setBackColor(0, 0, 0);

  myGLCD.drawLine(159, 15, 159, 224);

  myGLCD.drawLine(1, 119, 318, 119);

// Draw a moving sinewave

  x=1;

  for (int i=1; i<(318*20); i++)

  {

    x++;

    if (x==319)

      x=1;

    if (i>319)

    {

      if ((x==159)||(buf[x-1]==119))

        myGLCD.setColor(0,0,255);

      else

        myGLCD.setColor(0,0,0);

      myGLCD.drawPixel(x,buf[x-1]);

    }

    myGLCD.setColor(0,255,255);

    y=119+(sin(((i*1.1)*3.14)/180)*(90-(i / 100)));

    myGLCD.drawPixel(x,y);

    buf[x-1]=y;

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

// Draw some filled rectangles

  for (int i=1; i<6; i++)

  {

    switch (i)

    {

      case 1:

        myGLCD.setColor(255,0,255);

        break;

      case 2:

        myGLCD.setColor(255,0,0);

        break;

      case 3:

        myGLCD.setColor(0,255,0);

        break;

      case 4:

        myGLCD.setColor(0,0,255);

        break;

      case 5:

        myGLCD.setColor(255,255,0);

        break;

    }

    myGLCD.fillRect(70+(i*20), 30+(i*20), 130+(i*20), 90+(i*20));

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

// Draw some filled, rounded rectangles

  for (int i=1; i<6; i++)

  {

    switch (i)

    {

      case 1:

        myGLCD.setColor(255,0,255);

        break;

      case 2:

        myGLCD.setColor(255,0,0);

        break;

      case 3:

        myGLCD.setColor(0,255,0);

        break;

      case 4:

        myGLCD.setColor(0,0,255);

        break;

      case 5:

        myGLCD.setColor(255,255,0);

        break;

    }

    myGLCD.fillRoundRect(190-(i*20), 30+(i*20), 250-(i*20), 90+(i*20));

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

// Draw some filled circles

  for (int i=1; i<6; i++)

  {

    switch (i)

    {

      case 1:

        myGLCD.setColor(255,0,255);

        break;

      case 2:

        myGLCD.setColor(255,0,0);

        break;

      case 3:

        myGLCD.setColor(0,255,0);

        break;

      case 4:

        myGLCD.setColor(0,0,255);

        break;

      case 5:

        myGLCD.setColor(255,255,0);

        break;

    }

    myGLCD.fillCircle(100+(i*20),60+(i*20), 30);

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

// Draw some lines in a pattern

  myGLCD.setColor (255,0,0);

  for (int i=15; i<224; i+=5)

  {

    myGLCD.drawLine(1, i, (i*1.44)-10, 224);

  }

  myGLCD.setColor (255,0,0);

  for (int i=224; i>15; i-=5)

  {

    myGLCD.drawLine(318, i, (i*1.44)-11, 15);

  }

  myGLCD.setColor (0,255,255);

  for (int i=224; i>15; i-=5)

  {

    myGLCD.drawLine(1, i, 331-(i*1.44), 15);

  }

  myGLCD.setColor (0,255,255);

  for (int i=15; i<224; i+=5)

  {

    myGLCD.drawLine(318, i, 330-(i*1.44), 224);

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,225);

// Draw some random circles

  for (int i=0; i<100; i++)

  {

    myGLCD.setColor(random(255), random(255), random(255));

    x=32+random(256);

    y=45+random(146);

    r=random(30);

    myGLCD.drawCircle(x, y, r);

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

// Draw some random rectangles

  for (int i=0; i<100; i++)

  {

    myGLCD.setColor(random(255), random(255), random(255));

    x=2+random(316);

    y=16+random(207);

    x2=2+random(316);

    y2=16+random(207);

    myGLCD.drawRect(x, y, x2, y2);

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

// Draw some random rounded rectangles

  for (int i=0; i<100; i++)

  {

    myGLCD.setColor(random(255), random(255), random(255));

    x=2+random(316);

    y=16+random(207);

    x2=2+random(316);

    y2=16+random(207);

    myGLCD.drawRoundRect(x, y, x2, y2);

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

  for (int i=0; i<100; i++)

  {

    myGLCD.setColor(random(255), random(255), random(255));

    x=2+random(316);

    y=16+random(209);

    x2=2+random(316);

    y2=16+random(209);

    myGLCD.drawLine(x, y, x2, y2);

  }

  delay(2000);

  myGLCD.setColor(0,0,0);

  myGLCD.fillRect(1,15,318,224);

  for (int i=0; i<10000; i++)

  {

    myGLCD.setColor(random(255), random(255), random(255));

    myGLCD.drawPixel(2+random(316), 16+random(209));

  }

  delay(2000);

  myGLCD.fillScr(0, 0, 255);

  myGLCD.setColor(255, 0, 0);

  myGLCD.fillRoundRect(80, 70, 239, 169);

  myGLCD.setColor(255, 255, 255);

  myGLCD.setBackColor(255, 0, 0);

  myGLCD.print("That's it!", CENTER, 93);

  myGLCD.print("Restarting in a", CENTER, 119);

  myGLCD.print("few seconds...", CENTER, 132);

  myGLCD.setColor(0, 255, 0);

  myGLCD.setBackColor(0, 0, 255);

  myGLCD.print("Runtime: (msecs)", CENTER, 210);

  myGLCD.printNumI(millis(), CENTER, 225);

  delay (10000);

}
