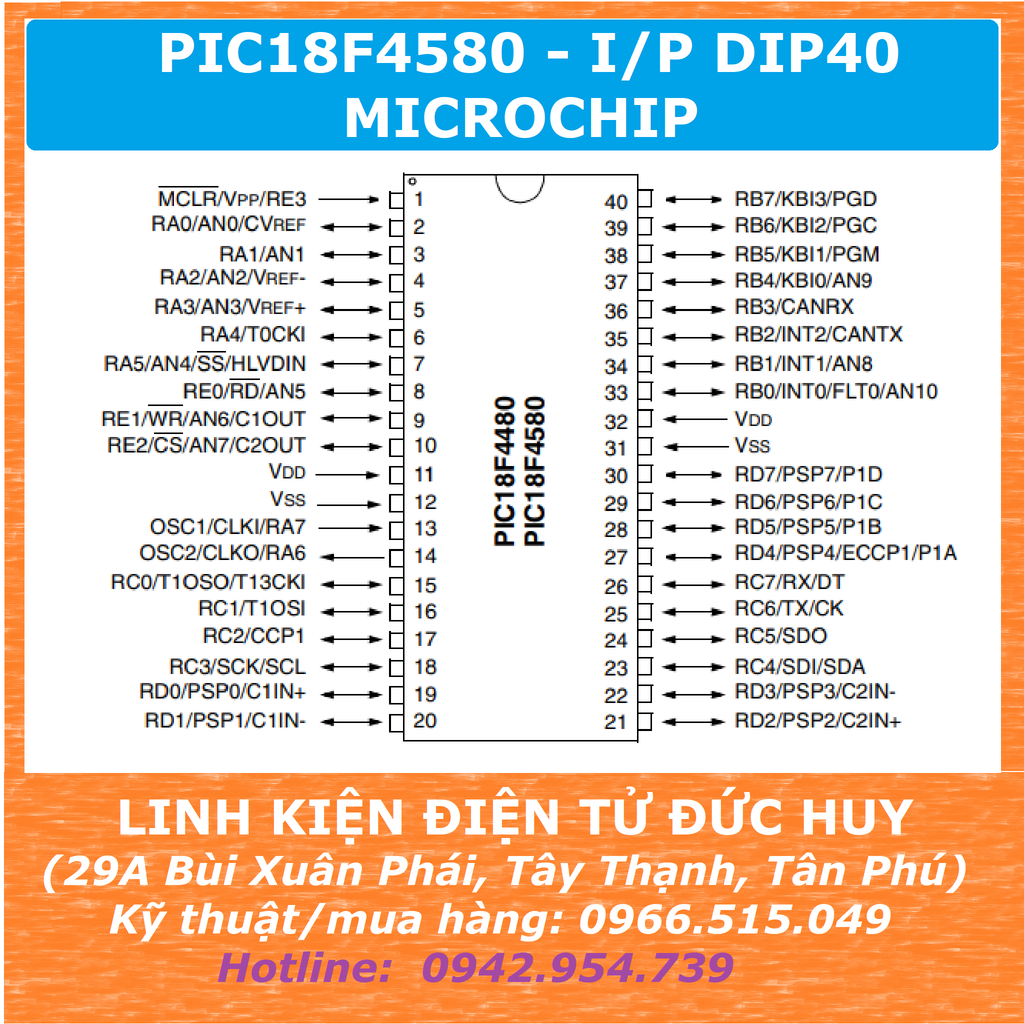

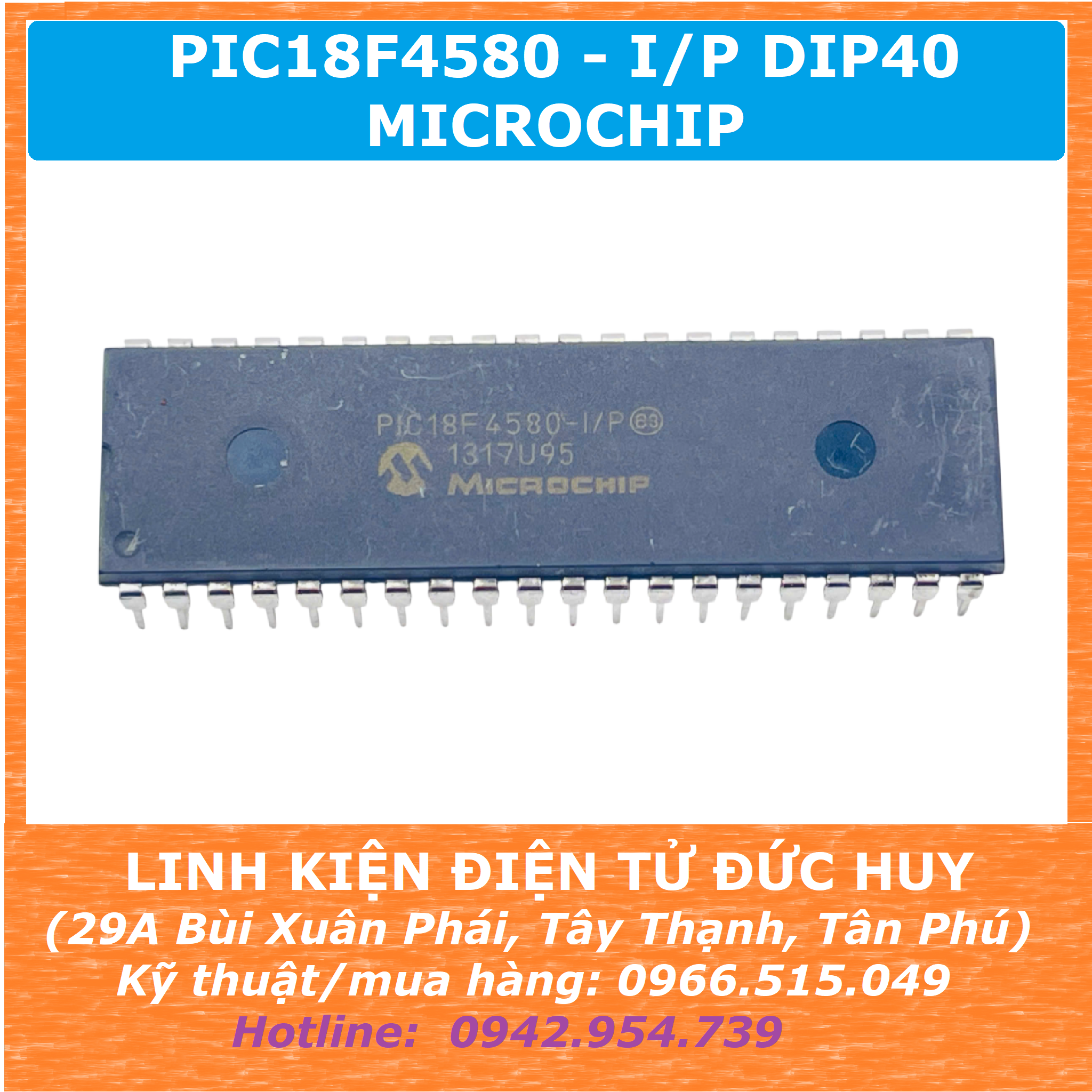

PIC18F4580 18F4580 DIP40 I/P 40 MHz FLASH 32kB (có CANBUS)

PIC18F4580 DIP là một chíp vi điều khiển được sản xuất bời hãng Microchip thuộc họ Pic.

Pic18F4580 là một bộ vi điều khiển 8 bit dựa trên kiến trúc RISC bộ nhớ chương trình 32KB ISP flash có thể ghi xóa hàng nghìn lần.

THÔNG SỐ KỸ THUẬT:

1. Special Microcontroller Features:

C Compiler Optimized Architecture with Optional Extended Instruction Set

• 100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical

• 1,000,000 Erase/Write Cycle Data EEPROM Memory Typical

• Flash/Data EEPROM Retention: > 40 Years

• Self-Programmable under Software Control

• Priority Levels for Interrupts • 8 x 8 Single-Cycle Hardware Multiplier

• Extended Watchdog Timer (WDT):

           - Programmable period from 41 ms to 131s

• Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins

• In-Circuit Debug (ICD) via Two Pins

• Wide Operating Voltage Range: 2.0V to 5.5V

2. Peripheral Highlights:

• High-Current Sink/Source 25 mA/25 mA

• Three External Interrupts

• One Capture/Compare/PWM (CCP) module

• Enhanced Capture/Compare/PWM (ECCP) module (40/44-pin devices only):

         - One, two or four PWM outputs

         - Selectable polarity

         - Programmable dead time

         - Auto-shutdown and auto-restart

• Master Synchronous Serial Port (MSSP) module Supporting 3-Wire SPI (all 4 modes) and I2C™ Master and Slave modes

• Enhanced Addressable USART module

                 - Supports RS-485, RS-232 and LIN 1.3

                 - RS-232 operation using internal oscillator block (no external crystal required)

                 - Auto-wake-up on Start bit

                 - Auto-Baud Detect

• 10-Bit, up to 11-Channel Analog-to-Digital Converter (A/D) module, up to 100 ksps:

                 - Auto-acquisition capability

                 - Conversion available during Sleep

• Dual Analog Comparators with Input Multiplexing

3. ECAN Technology Module Features:

• Message Bit Rates up to 1 Mbps

• Conforms to CAN 2.0B Active Specification

• Fully Backward Compatible with PIC18XXX8 CAN modules

• Three Modes of Operation: - Legacy, Enhanced Legacy, FIFO

• Three Dedicated Transmit Buffers with Prioritization

• Two Dedicated Receive Buffers • Six Programmable Receive/Transmit Buffers

• Three Full 29-Bit Acceptance Masks

• 16 Full 29-Bit Acceptance Filters w/Dynamic Association

• DeviceNet™ Data Byte Filter Support

• Automatic Remote Frame Handling

• Advanced Error Management Features
