MPU9250 (chính hãng) AK8963 CẢM BIẾN 9 TRỤC 9DOF I2C, SPI

HƯỚNG DẪN CÀI ĐẶT THƯ VIỆN MPU9250 TRÊN ARDUINO:

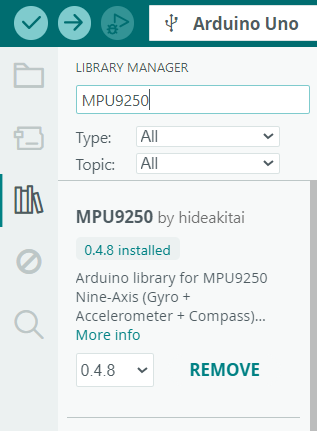

  VÀO LIBRARY MANAGER TÌM VÀ TẢI VỀ THƯ VIỆN "MPU9250 by hideakitai"

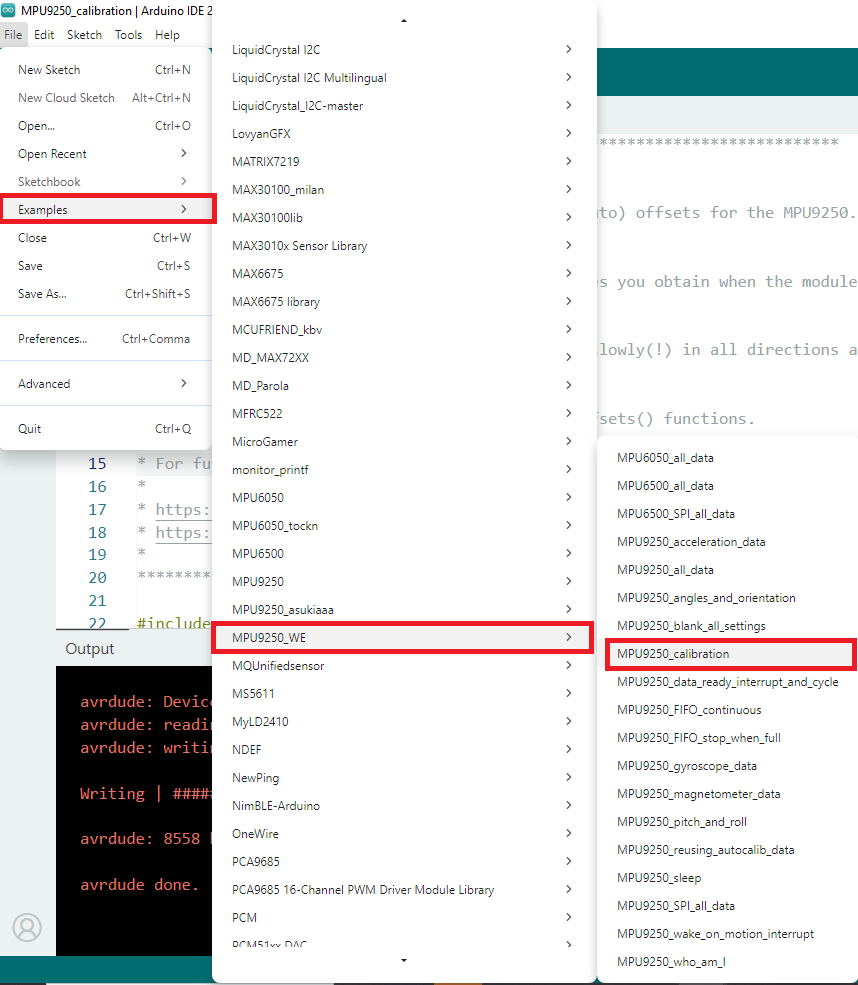

CODE HIỆU CHUẨN CALIB MPU9250:

HOẶC COPY Ở ĐÂY:

/***************************************************************************

* Example sketch for the MPU9250_WE library

*

* This sketch can be used to determine the (non-auto) offsets for the MPU9250.

* It does not use the internal offset registers.

*

* For the gyroscope offsets just use the raw values you obtain when the module is

* not moved.

*

* For the accelerometer offsets turn the MPU9250 slowly(!) in all directions and find the

* minimum and maximum raw values for all axes.

*

* Insert the values in the corresponding setxxxOffsets() functions.

*

* For further information visit my blog:

*

* https://wolles-elektronikkiste.de/mpu9250-9-achsen-sensormodul-teil-1  (German)

* https://wolles-elektronikkiste.de/en/mpu9250-9-axis-sensor-module-part-1  (English)

*

***************************************************************************/

#include <MPU9250_WE.h>

#include <Wire.h>

#define MPU9250_ADDR 0x68

/* There are several ways to create your MPU9250 object:

 * MPU9250_WE myMPU9250 = MPU9250_WE()              -> uses Wire / I2C Address = 0x68

 * MPU9250_WE myMPU9250 = MPU9250_WE(MPU9250_ADDR)  -> uses Wire / MPU9250_ADDR

 * MPU9250_WE myMPU9250 = MPU9250_WE(&wire2)        -> uses the TwoWire object wire2 / MPU9250_ADDR

 * MPU9250_WE myMPU9250 = MPU9250_WE(&wire2, MPU9250_ADDR) -> all together

 * Successfully tested with two I2C busses on an ESP32

 */

MPU9250_WE myMPU9250 = MPU9250_WE(MPU9250_ADDR);

void setup() {

  Serial.begin(115200);

  Wire.begin();

  if(!myMPU9250.init()){

    Serial.println("MPU9250 does not respond");

  }

  else{

    Serial.println("MPU9250 is connected");

  }

  /*  This is a more accurate method for calibration than the autoOffset. You have to

   *  determine the minimum and maximum raw acceleration values of the axes determined

   *  in the range +/- 2 g.

   *  You call the function as follows: setAccOffsets(xMin,xMax,yMin,yMax,zMin,zMax);

   *  Use either autoOffset or setAccOffsets, not both.

   */

  //myMPU9250.setAccOffsets(-14240.0, 18220.0, -17280.0, 15590.0, -20930.0, 12080.0);

  /*  The gyroscope data is not zero, even if don't move the MPU9250.

   *  To start at zero, you can apply offset values. These are the gyroscope raw values you obtain

   *  using the +/- 250 degrees/s range.

   *  Use either autoOffset or setGyrOffsets, not both.

   */

  //myMPU9250.setGyrOffsets(45.0, 145.0, -105.0);

 /*  You can enable or disable the digital low pass filter (DLPF). If you disable the DLPF, you

   *  need to select the bandwidth, which can be either 8800 or 3600 Hz. 8800 Hz has a shorter delay,

   *  but higher noise level. If DLPF is disabled, the output rate is 32 kHz.

   *  MPU9250_BW_WO_DLPF_3600

   *  MPU9250_BW_WO_DLPF_8800

   */

  myMPU9250.enableGyrDLPF();

  //myMPU9250.disableGyrDLPF(MPU9250_BW_WO_DLPF_8800); // bandwidth without DLPF

  /*  Digital Low Pass Filter for the gyroscope must be enabled to choose the level.

   *  MPU9250_DPLF_0, MPU9250_DPLF_2, ...... MPU9250_DPLF_7

   *

   *  DLPF    Bandwidth [Hz]   Delay [ms]   Output Rate [kHz]

   *    0         250            0.97             8

   *    1         184            2.9              1

   *    2          92            3.9              1

   *    3          41            5.9              1

   *    4          20            9.9              1

   *    5          10           17.85             1

   *    6           5           33.48             1

   *    7        3600            0.17             8

   *

   *    You achieve lowest noise using level 6

   */

  myMPU9250.setGyrDLPF(MPU9250_DLPF_6);  // lowest noise

  /*  MPU9250_GYRO_RANGE_250       250 degrees per second (default)

   *  MPU9250_GYRO_RANGE_500       500 degrees per second

   *  MPU9250_GYRO_RANGE_1000     1000 degrees per second

   *  MPU9250_GYRO_RANGE_2000     2000 degrees per second

   */

  myMPU9250.setGyrRange(MPU9250_GYRO_RANGE_250);

  /*  MPU9250_ACC_RANGE_2G      2 g

   *  MPU9250_ACC_RANGE_4G      4 g

   *  MPU9250_ACC_RANGE_8G      8 g

   *  MPU9250_ACC_RANGE_16G    16 g

   */

  myMPU9250.setAccRange(MPU9250_ACC_RANGE_2G);

 /*  Enable/disable the digital low pass filter for the accelerometer

   *  If disabled the bandwidth is 1.13 kHz, delay is 0.75 ms, output rate is 4 kHz

   */

  myMPU9250.enableAccDLPF(true);

  /*  Digital low pass filter (DLPF) for the accelerometer, if enabled

   *  MPU9250_DPLF_0, MPU9250_DPLF_2, ...... MPU9250_DPLF_7

   *   DLPF     Bandwidth [Hz]      Delay [ms]    Output rate [kHz]

   *     0           460               1.94           1

   *     1           184               5.80           1

   *     2            92               7.80           1

   *     3            41              11.80           1

   *     4            20              19.80           1

   *     5            10              35.70           1

   *     6             5              66.96           1

   *     7           460               1.94           1

   */

  myMPU9250.setAccDLPF(MPU9250_DLPF_6);  // lowest noise

  Serial.print("Turn your MPU9250 slowly(!) in all directions to determine ");

  Serial.println(" the min/max raw acceleration values.");

  Serial.println("For the gyroscope offsets just note the gyro raw values for the unmoved sensor");

  delay(1000);

}

void loop() {

  xyzFloat accRaw;

  xyzFloat gyrRaw;

  xyzFloat corrAccRaw;

  xyzFloat corrGyrRaw;

  accRaw = myMPU9250.getAccRawValues();

  gyrRaw = myMPU9250.getGyrRawValues();

  corrAccRaw = myMPU9250.getCorrectedAccRawValues();

  corrGyrRaw = myMPU9250.getCorrectedGyrRawValues();

  Serial.println("Acceleration raw values without offset:");

  Serial.print(accRaw.x);

  Serial.print("   ");

  Serial.print(accRaw.y);

  Serial.print("   ");

  Serial.println(accRaw.z);

  Serial.println("Gyroscope raw values without offset:");

  Serial.print(gyrRaw.x);

  Serial.print("   ");

  Serial.print(gyrRaw.y);

  Serial.print("   ");

  Serial.println(gyrRaw.z);

  Serial.println("Acceleration raw values with offset:");

  Serial.print(corrAccRaw.x);

  Serial.print("   ");

  Serial.print(corrAccRaw.y);

  Serial.print("   ");

  Serial.println(corrAccRaw.z);

  Serial.println("Gyroscope raw values with offset:");

  Serial.print(corrGyrRaw.x);

  Serial.print("   ");

  Serial.print(corrGyrRaw.y);

  Serial.print("   ");

  Serial.println(corrGyrRaw.z);

  delay(2000);

}

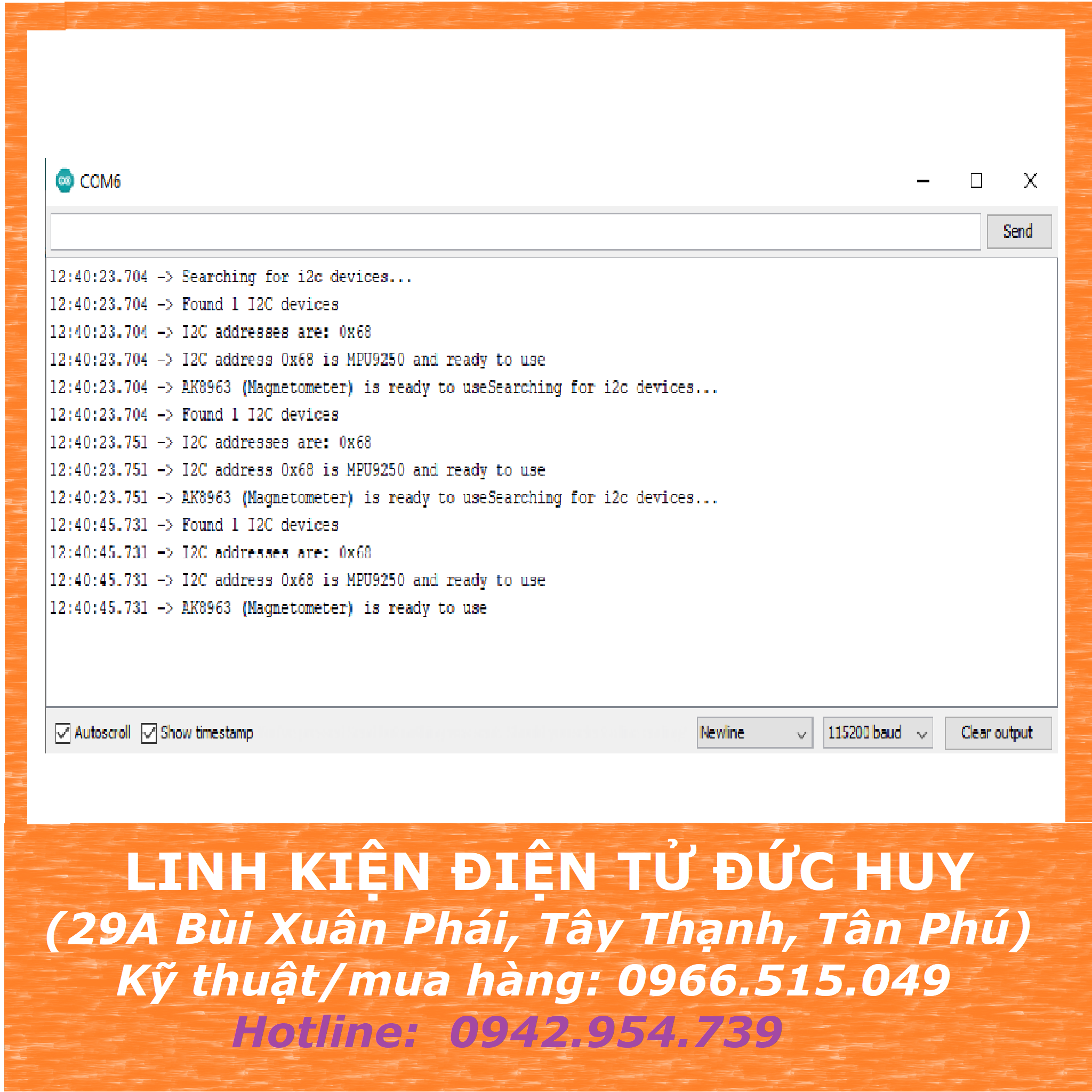

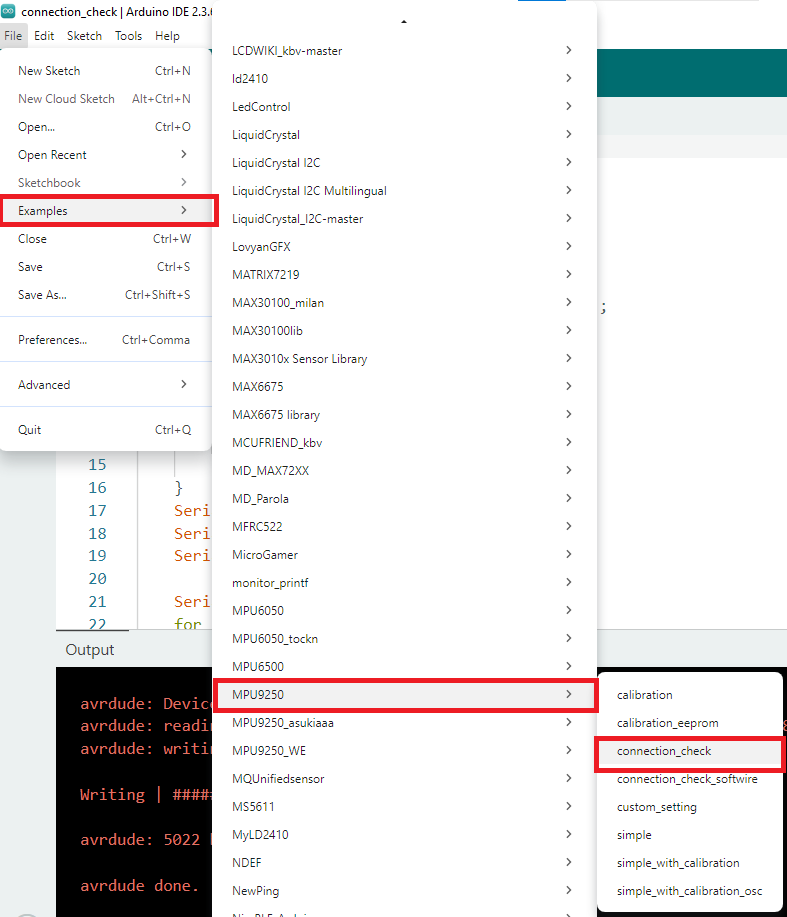

CODE KIỂM TRA KẾT NỐI MPU9250 VÀ AK8963

HOẶC CÓ THỂ COPY Ở ĐÂY:

#include "MPU9250.h"

uint8_t addrs[7] = {0};

uint8_t device_count = 0;

template <typename WireType = TwoWire>

void scan_mpu(WireType& wire = Wire) {

    Serial.println("Searching for i2c devices...");

    device_count = 0;

    for (uint8_t i = 0x68; i < 0x70; ++i) {

        wire.beginTransmission(i);

        if (wire.endTransmission() == 0) {

            addrs[device_count++] = i;

            delay(10);

        }

    }

    Serial.print("Found ");

    Serial.print(device_count, DEC);

    Serial.println(" I2C devices");

    Serial.print("I2C addresses are: ");

    for (uint8_t i = 0; i < device_count; ++i) {

        Serial.print("0x");

        Serial.print(addrs[i], HEX);

        Serial.print(" ");

    }

    Serial.println();

}

template <typename WireType = TwoWire>

uint8_t readByte(uint8_t address, uint8_t subAddress, WireType& wire = Wire) {

    uint8_t data = 0;

    wire.beginTransmission(address);

    wire.write(subAddress);

    wire.endTransmission(false);

    wire.requestFrom(address, (size_t)1);

    if (wire.available()) data = wire.read();

    return data;

}

void setup() {

    Serial.begin(115200);

    Serial.flush();

    Wire.begin();

    delay(2000);

    scan_mpu();

    if (device_count == 0) {

        Serial.println("No device found on I2C bus. Please check your hardware connection");

        while (1)

            ;

    }

    // check WHO_AM_I address of MPU

    for (uint8_t i = 0; i < device_count; ++i) {

        Serial.print("I2C address 0x");

        Serial.print(addrs[i], HEX);

        byte ca = readByte(addrs[i], WHO_AM_I_MPU9250);

        if (ca == MPU9250_WHOAMI_DEFAULT_VALUE) {

            Serial.println(" is MPU9250 and ready to use");

        } else if (ca == MPU9255_WHOAMI_DEFAULT_VALUE) {

            Serial.println(" is MPU9255 and ready to use");

        } else if (ca == MPU6500_WHOAMI_DEFAULT_VALUE) {

            Serial.println(" is MPU6500 and ready to use");

        } else {

            Serial.println(" is not MPU series");

            Serial.print("WHO_AM_I is ");

            Serial.println(ca, HEX);

            Serial.println("Please use correct device");

        }

        static constexpr uint8_t AK8963_ADDRESS {0x0C};  //  Address of magnetometer

        static constexpr uint8_t AK8963_WHOAMI_DEFAULT_VALUE {0x48};

        byte cb = readByte(AK8963_ADDRESS, AK8963_WHO_AM_I);

        if (cb == AK8963_WHOAMI_DEFAULT_VALUE) {

            Serial.print("AK8963 (Magnetometer) is ready to use");

        } else {

            Serial.print("AK8963 (Magnetometer) was not found");

        }

    }

}

void loop() {

}
