MÀN HÌNH TFT 2.8" 240x320Px Giao tiếp SPI ST7789

THÔNG SỐ KỸ THUẬT:

• Nguồn : 3.3 ~ 5V
• Chip điều khiển :ST7789
• Độ phân giải : 240 x 320 pixel
• Màu sắc : 18 bit , lên đến 262,000 màu
• Đèn nền : LED trắng
•

MÔ TẢ CHÂN

• VCC : Nguồn điện đầu vào 5V/3.3V
• GND : ÂM
• CS : Tín hiệu chọn chip LCD, cho phép mức thấp
• RESET : Tín hiệu reset LCD, reset mức thấp
• DC : Thanh ghi LCD/tín hiệu lựa chọn dữ liệu, mức cao: thanh ghi, mức thấp: dữ liệu
• MOSI : Tín hiệu dữ liệu ghi bus SPI
• SCK : Tín hiệu xung nhịp bus SPI
• LED : Điều khiển đèn nền, chiếu sáng mức cao
• MISO : Tín hiệu dữ liệu đọc bus SPI
• T_CLK: Tín hiệu xung nhịp bus SPI chạm
• T_CS: Tín hiệu chọn chip màn hình cảm ứng, kích hoạt mức thấp
• T_DIN : Đầu vào bus SPI cảm ứng
• T_DO: Đầu ra bus SPI cảm ứng
• T_IRQ: Tín hiệu ngắt màn hình cảm ứng, mức thấp khi phát hiện chạm

TẢI THƯ VIỆN CHO TFT 2.8 SPI:

⇒     CLICK VÀO ĐỂ TẢI THƯ VIỆN

CODE TEST TFT 2.8 ST7789:

CODE TEST ESP32 GIAO TIẾP TFT 2.8:

/*

   Created by DIYables

   This example code is in the public domain

   Comprehensive graphics benchmark - tests most drawing functions

   and reports timing for each operation, both on the screen and

   on the Serial Monitor.

   Product page: https://diyables.io/tft-spi

   Credit: This example is based on the colligate_test example from the LCDWIKI library

*/

// =============================================

// Single include brings in the base class plus all driver classes.

// =============================================

#include <DIYables_TFT_SPI.h>

// =============================================

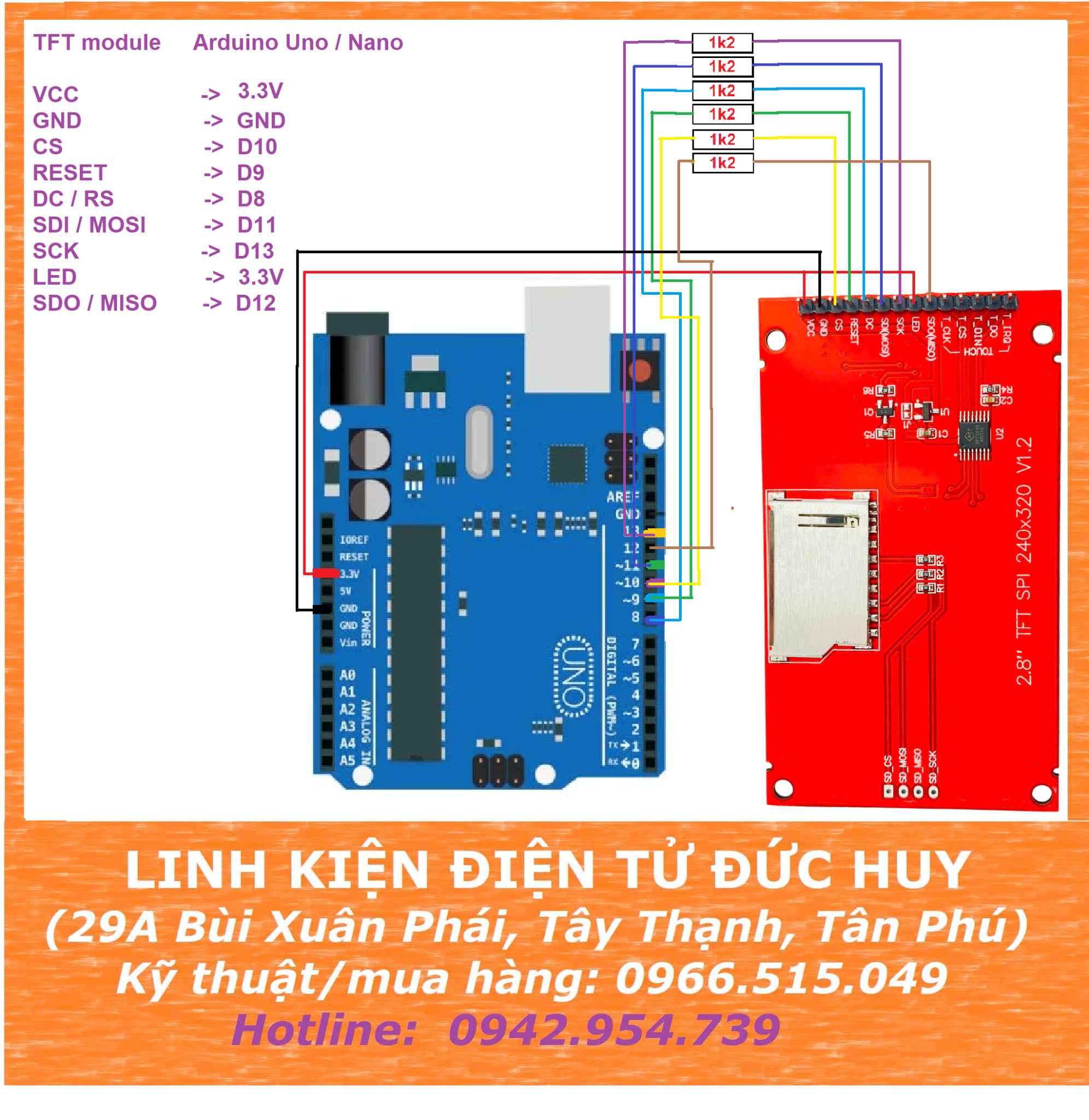

// Wiring (Arduino Uno / Nano)

// ---------------------------------------------

//   TFT module             Arduino Uno / Nano

//   ------------              ---------------------------------

//   VCC        ->                       5V

//   GND        ->                    GND

//   CS         ->            D10  (TFT_CS_PIN)

//   RESET      ->        D9   (TFT_RST_PIN)

//   DC / RS    ->        D8   (TFT_DC_PIN)

//   SDI / MOSI ->      D11  (hardware SPI MOSI)

//   SCK        ->          D13  (hardware SPI SCK)

//   LED        ->          3.3V (or any GPIO via initBacklight)

//   SDO / MISO ->    D12  (only needed when reading from display)

// =============================================

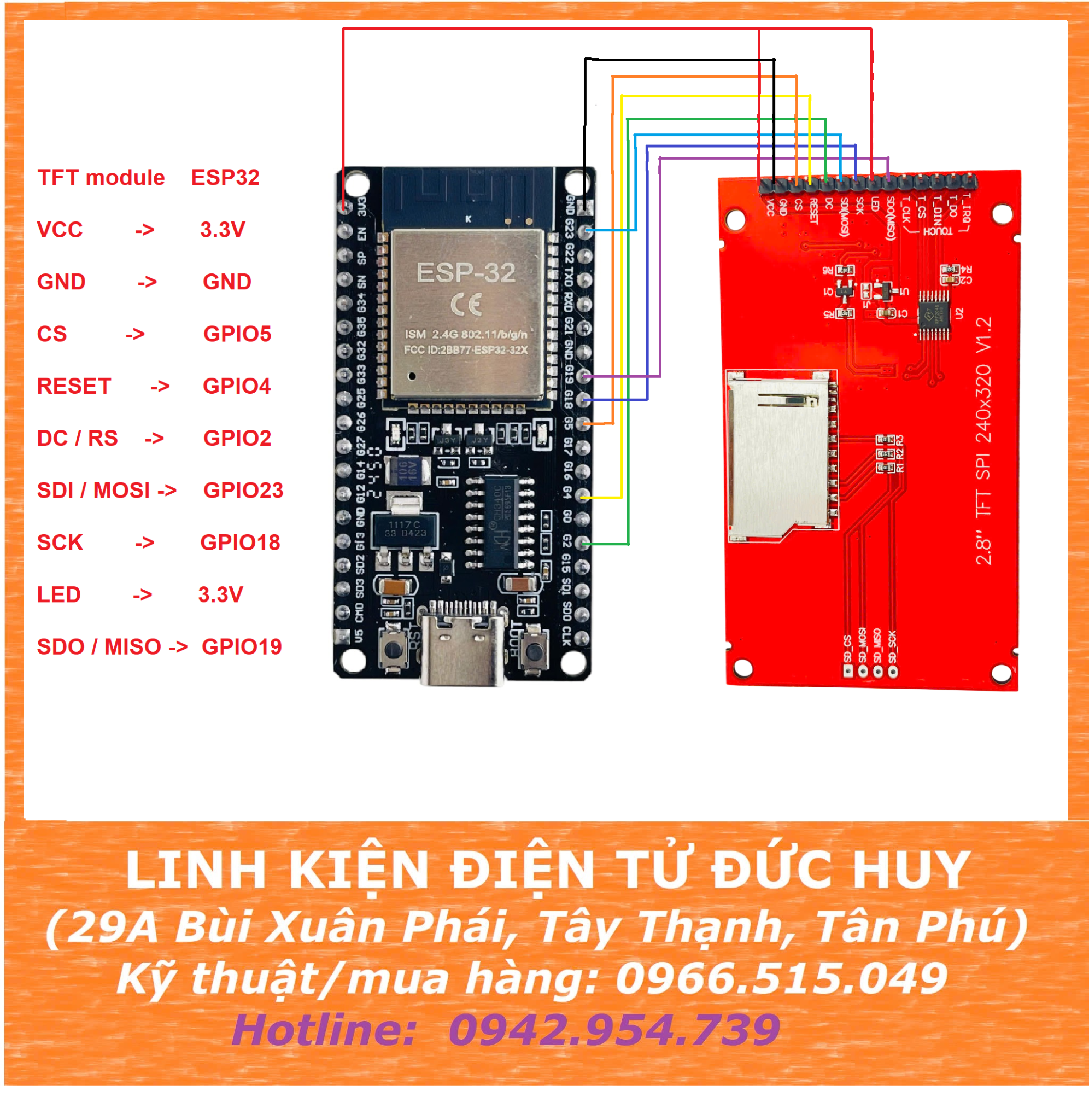

// Wiring (ESP32)

// ---------------------------------------------

//   TFT module                     ESP32

//   ------------              ---------------------------------

//   VCC        ->                     3.3V

//   GND        ->                    GND

//   CS         ->                     GPIO5

//   RESET      ->                 GPIO4

//   DC / RS    ->                 GPIO2

//   SDI / MOSI ->               GPIO23

//   SCK        ->                   GPIO18

//   LED        ->          3.3V (or any GPIO via initBacklight)

//   SDO / MISO ->              GPIO19

// =============================================

// SPI pin definitions (adjust for your board)

// =============================================

#define TFT_CS_PIN   5

#define TFT_DC_PIN   2

#define TFT_RST_PIN  4

// Panel resolution in native (portrait) orientation - change to match your module

#define TFT_WIDTH   320

#define TFT_HEIGHT  240

// MOSI and SCK use default hardware SPI pins

// =============================================

// Create display object (uncomment matching driver)

// =============================================

//DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);

// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);

DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);

// The tests run in landscape, so the screen size is filled in by setup()

uint16_t SCREEN_WIDTH;

uint16_t SCREEN_HEIGHT;

// Drawing area: everything between the header and the footer bar

#define TOP_Y     16

#define BOT_Y     (SCREEN_HEIGHT - 17)

// Color definitions (RGB565)

#define BLACK     DIYables_TFT_SPI::colorRGB(0, 0, 0)

#define WHITE     DIYables_TFT_SPI::colorRGB(255, 255, 255)

#define RED       DIYables_TFT_SPI::colorRGB(255, 0, 0)

#define GREEN     DIYables_TFT_SPI::colorRGB(0, 255, 0)

#define BLUE      DIYables_TFT_SPI::colorRGB(0, 0, 255)

#define CYAN      DIYables_TFT_SPI::colorRGB(0, 255, 255)

#define MAGENTA   DIYables_TFT_SPI::colorRGB(255, 0, 255)

#define YELLOW    DIYables_TFT_SPI::colorRGB(255, 255, 0)

#define ORANGE    DIYables_TFT_SPI::colorRGB(255, 165, 0)

// Print text horizontally centered on the screen

void printCentered(const char *text, int16_t y, uint16_t color) {

  int16_t x1, y1;

  uint16_t w, h;

  TFT_display.setTextColor(color);

  TFT_display.setTextSize(1);

  TFT_display.getTextBounds(text, 0, y, &x1, &y1, &w, &h);

  int16_t x = (SCREEN_WIDTH - (int16_t)w) / 2;

  if (x < 0) x = 0;

  TFT_display.setCursor(x, y);

  TFT_display.print(text);

}

// Plot one point of a curve, clipping values that run far off screen

// (tan and cot grow without bound near their asymptotes)

void plotCurve(int16_t x, float value, uint16_t color) {

  if (value > 30000.0 || value < -30000.0) return;

  int16_t y = SCREEN_HEIGHT / 2 - 1 + (int16_t)value;

  TFT_display.drawPixel(x, y, color);

}

// Display main surface with header/footer

unsigned long show_text(void) {

  unsigned long time_start = micros();

  TFT_display.fillRect(0, 0, SCREEN_WIDTH, 15, DIYables_TFT_SPI::colorRGB(32, 0, 255));

  printCentered("* DIYables SPI TFT LCD Display *", 3, GREEN);

  TFT_display.fillRect(0, SCREEN_HEIGHT - 15, SCREEN_WIDTH, 15,

                       DIYables_TFT_SPI::colorRGB(128, 128, 128));

  printCentered("<https://diyables.io/tft-spi>", SCREEN_HEIGHT - 11, WHITE);

  TFT_display.drawRect(0, 15, SCREEN_WIDTH, SCREEN_HEIGHT - 31, RED);

  return micros() - time_start;

}

// Display triangle functions (sin, cos, tan, cot)

unsigned long show_triangle_function(void) {

  uint16_t i;

  unsigned long time_start = micros();

  float amp = (BOT_Y - TOP_Y) / 2.0 - 2.0;      // fill the drawing area

  float step = 360.0 / (SCREEN_WIDTH - 2);      // one full period across the screen

  // Draw crosshairs

  TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1, TOP_Y, SCREEN_HEIGHT - 32, BLUE);

  TFT_display.drawFastHLine(1, SCREEN_HEIGHT / 2 - 1, SCREEN_WIDTH - 2, BLUE);

  for (i = 1; i <= (SCREEN_HEIGHT - 32) / 2 / 10; i++) {

    TFT_display.drawFastHLine(SCREEN_WIDTH / 2 - 3, SCREEN_HEIGHT / 2 - 1 - i * 10, 5, BLUE);

    TFT_display.drawFastHLine(SCREEN_WIDTH / 2 - 3, SCREEN_HEIGHT / 2 - 1 + i * 10, 5, BLUE);

  }

  for (i = 1; i <= (SCREEN_WIDTH - 2) / 2 / 10; i++) {

    TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1 - i * 10, SCREEN_HEIGHT / 2 - 3, 5, BLUE);

    TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1 + i * 10, SCREEN_HEIGHT / 2 - 3, 5, BLUE);

  }

  TFT_display.setTextSize(1);

  TFT_display.setTextColor(CYAN);

  TFT_display.setCursor(5, TOP_Y + 1);

  TFT_display.print(F("sin"));

  TFT_display.setTextColor(GREEN);

  TFT_display.setCursor(5, TOP_Y + 9);

  TFT_display.print(F("cos"));

  TFT_display.setTextColor(YELLOW);

  TFT_display.setCursor(5, TOP_Y + 17);

  TFT_display.print(F("tan"));

  TFT_display.setTextColor(RED);

  TFT_display.setCursor(5, TOP_Y + 25);

  TFT_display.print(F("cot"));

  for (i = 1; i < SCREEN_WIDTH - 1; i++) {

    float rad = radians(i * step);

    plotCurve(i, sin(rad) * amp, CYAN);

    plotCurve(i, cos(rad) * amp, GREEN);

    plotCurve(i, tan(rad) * 10.0, YELLOW);

    float t = tan(rad);

    if (t != 0.0) plotCurve(i, (1.0 / t) * 10.0, RED);

  }

  return micros() - time_start;

}

// Draw a moving sinewave. The previous trace is erased by recomputing the

// value one screen-width earlier, so no frame buffer is needed - that keeps

// this example runnable on boards with very little RAM, such as the Uno R3.

unsigned long show_sinewave(void) {

  unsigned long time_start = micros();

  uint16_t span = SCREEN_WIDTH - 2;

  uint32_t total = (uint32_t)span * 12;

  float amp = (BOT_Y - TOP_Y) / 2.0 - 2.0;

  float step = 720.0 / span;                    // two periods across the screen

  TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1, TOP_Y, SCREEN_HEIGHT - 32, BLUE);

  TFT_display.drawFastHLine(1, SCREEN_HEIGHT / 2 - 1, SCREEN_WIDTH - 2, BLUE);

  for (uint32_t i = 0; i < total; i++) {

    uint16_t x = 1 + (i % span);

    // Erase the point drawn at this x one screen ago

    if (i >= span) {

      uint32_t prev = i - span;

      float decay = 1.0 - (float)prev / (float)total * 0.5;

      int16_t oldY = SCREEN_HEIGHT / 2 - 1 + (int16_t)(sin(radians(prev * step)) * amp * decay);

      // Keep the axes intact while erasing

      if (x == SCREEN_WIDTH / 2 - 1 || oldY == SCREEN_HEIGHT / 2 - 1) {

        TFT_display.drawPixel(x, oldY, BLUE);

      } else {

        TFT_display.drawPixel(x, oldY, BLACK);

      }

    }

    float decay = 1.0 - (float)i / (float)total * 0.5;

    int16_t y = SCREEN_HEIGHT / 2 - 1 + (int16_t)(sin(radians(i * step)) * amp * decay);

    TFT_display.drawPixel(x, y, DIYables_TFT_SPI::colorRGB(255, 64, 255));

  }

  return micros() - time_start;

}

// Draw some filled rectangles

unsigned long show_fill_rectangle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t side_len = (SCREEN_HEIGHT - 40) / 5;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * side_len) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * side_len) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillRect(x_spec + i * side_len, y_spec + i * side_len,

                         side_len, side_len, colors[i]);

    TFT_display.fillRect(x_spec + i * side_len, y_spec + (4 - i) * side_len,

                         side_len, side_len, colors[i]);

  }

  return micros() - time_start;

}

// Draw some filled round rectangles

unsigned long show_fill_round_rectangle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t side_len = (SCREEN_HEIGHT - 40) / 5;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * side_len) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * side_len) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillRoundRect(x_spec + i * side_len, y_spec + i * side_len,

                              side_len, side_len, 10, colors[i]);

    TFT_display.fillRoundRect(x_spec + i * side_len, y_spec + (4 - i) * side_len,

                              side_len, side_len, 10, colors[i]);

  }

  return micros() - time_start;

}

// Draw some filled circles

unsigned long show_fill_circle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t r_len = (SCREEN_HEIGHT - 40) / 5 / 2;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * r_len * 2) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * r_len * 2) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillCircle(x_spec + r_len + i * r_len * 2,

                           y_spec + r_len + i * r_len * 2, r_len, colors[i]);

    TFT_display.fillCircle(x_spec + r_len + i * r_len * 2,

                           y_spec + (5 - i) * r_len * 2 - r_len, r_len, colors[i]);

  }

  return micros() - time_start;

}

// Draw some filled triangles

unsigned long show_fill_triangle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t h_len = (SCREEN_HEIGHT - 40) / 5;

  uint16_t side_len = (h_len * 115) / 100;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * side_len) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * h_len) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillTriangle(

      x_spec + i * side_len, y_spec + (i + 1) * h_len,

      x_spec + side_len / 2 + i * side_len, y_spec + i * h_len,

      x_spec + (i + 1) * side_len, y_spec + (i + 1) * h_len, colors[i]);

    TFT_display.fillTriangle(

      x_spec + i * side_len, y_spec + (5 - i) * h_len,

      x_spec + side_len / 2 + i * side_len, y_spec + (4 - i) * h_len,

      x_spec + (i + 1) * side_len, y_spec + (5 - i) * h_len, colors[i]);

  }

  return micros() - time_start;

}

// Draw grid lines pattern

unsigned long show_grid_lines(void) {

  uint16_t i;

  unsigned long time_start = micros();

  // Sweep the far end of each line across the full width as i walks down

  float k = (float)(SCREEN_WIDTH - 3) / (float)(BOT_Y - TOP_Y);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(1, i, 1 + (i - TOP_Y) * k, BOT_Y, RED);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(SCREEN_WIDTH - 2, i, SCREEN_WIDTH - 2 - (i - TOP_Y) * k, TOP_Y, RED);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(1, i, 1 + (i - TOP_Y) * k, TOP_Y, CYAN);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(SCREEN_WIDTH - 2, i, SCREEN_WIDTH - 2 - (i - TOP_Y) * k, BOT_Y, CYAN);

  return micros() - time_start;

}

// Draw some random pixels

unsigned long show_random_pixels(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 10000; i++) {

    TFT_display.drawPixel(

      2 + random(SCREEN_WIDTH - 4),

      17 + random(SCREEN_HEIGHT - 34),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random lines

unsigned long show_random_lines(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 300; i++) {

    TFT_display.drawLine(

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random rectangles

unsigned long show_random_rectangles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 150; i++) {

    int16_t x1 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y1 = 17 + random(SCREEN_HEIGHT - 34);

    int16_t x2 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y2 = 17 + random(SCREEN_HEIGHT - 34);

    TFT_display.drawRect(min(x1, x2), min(y1, y2), abs(x2 - x1), abs(y2 - y1),

                         DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random round rectangles

unsigned long show_random_round_rectangles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 150; i++) {

    int16_t x1 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y1 = 17 + random(SCREEN_HEIGHT - 34);

    int16_t x2 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y2 = 17 + random(SCREEN_HEIGHT - 34);

    int16_t w = abs(x2 - x1);

    int16_t h = abs(y2 - y1);

    // A round rectangle needs room for the corner radius

    if (w < 12 || h < 12) continue;

    TFT_display.drawRoundRect(min(x1, x2), min(y1, y2), w, h, 5,

                              DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random circles

unsigned long show_random_circles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t r_max = (SCREEN_HEIGHT - 34) / 6;

  for (i = 0; i < 150; i++) {

    TFT_display.drawCircle(

      2 + r_max + random(SCREEN_WIDTH - 4 - r_max * 2),

      17 + r_max + random(SCREEN_HEIGHT - 34 - r_max * 2),

      random(r_max),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random triangles

unsigned long show_random_triangles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 150; i++) {

    TFT_display.drawTriangle(

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Clear the drawing area

void clear_screen(void) {

  delay(2000);

  TFT_display.fillRect(1, 16, SCREEN_WIDTH - 2, SCREEN_HEIGHT - 32, BLACK);

}

// Function pointer array and labels

typedef unsigned long (*ShowFunc)(void);

ShowFunc show_function[] = {

  show_text,

  show_triangle_function,

  show_sinewave,

  show_fill_rectangle,

  show_fill_round_rectangle,

  show_fill_circle,

  show_fill_triangle,

  show_grid_lines,

  show_random_pixels,

  show_random_lines,

  show_random_rectangles,

  show_random_round_rectangles,

  show_random_circles,

  show_random_triangles,

};

#define NUM_TESTS 14

#define LABEL_LEN 32   // 30 visible chars + terminator, rounded up

// Kept in flash so the sketch still fits the Uno R3's 2 KB of RAM

const char show_str[NUM_TESTS][LABEL_LEN] PROGMEM = {

  "show text                    :",

  "show triangle function       :",

  "show sinewave                :",

  "show fill rectangle          :",

  "show fill round rectangle    :",

  "show fill circle             :",

  "show fill triangle           :",

  "show grid lines              :",

  "show random pixels           :",

  "show random lines            :",

  "show random rectangles       :",

  "show random round rectangles :",

  "show random circles          :",

  "show random triangles        :"

};

// Run all tests and display timing results

unsigned long show_total_time(void) {

  uint16_t i;

  unsigned long buf[NUM_TESTS];

  unsigned long time_start = micros();

  char strbuf[LABEL_LEN];

  for (i = 0; i < NUM_TESTS; i++) {

    buf[i] = show_function[i]();

    clear_screen();

  }

  int16_t x_off = (SCREEN_WIDTH - 260) / 2;

  if (x_off < 2) x_off = 2;

  int16_t y_off = (SCREEN_HEIGHT - NUM_TESTS * 10) / 2;

  if (y_off < TOP_Y + 2) y_off = TOP_Y + 2;

  for (i = 0; i < NUM_TESTS; i++) {

    strcpy_P(strbuf, show_str[i]);

    TFT_display.setTextColor(ORANGE);

    TFT_display.setTextSize(1);

    TFT_display.setCursor(x_off, y_off + i * 10);

    TFT_display.print(strbuf);

    TFT_display.setTextColor(GREEN);

    TFT_display.setCursor(x_off + 185, y_off + i * 10);

    TFT_display.print(buf[i]);

    // Also print to Serial for easy comparison

    Serial.print(strbuf);

    Serial.print(F(" "));

    Serial.print(buf[i]);

    Serial.println(F(" us"));

  }

  // Print total

  unsigned long total = 0;

  for (i = 0; i < NUM_TESTS; i++) total += buf[i];

  Serial.print(F("Total (tests only):            "));

  Serial.print(total);

  Serial.println(F(" us"));

  Serial.println();

  delay(5000);

  return micros() - time_start;

}

// Display ending screen with total time

void show_end(unsigned long run_time) {

  TFT_display.fillScreen(CYAN);

  int16_t bw = 240, bh = 120;

  if (bw > SCREEN_WIDTH - 10) bw = SCREEN_WIDTH - 10;

  TFT_display.fillRoundRect((SCREEN_WIDTH - bw) / 2, (SCREEN_HEIGHT - bh) / 2,

                            bw, bh, 5, RED);

  int16_t cy = (SCREEN_HEIGHT - bh) / 2 + 20;

  printCentered("Running over!", cy, CYAN);

  printCentered("That's ok!", cy + 10, CYAN);

  printCentered("After a few seconds,", cy + 20, CYAN);

  printCentered("it will restart.", cy + 30, CYAN);

  printCentered("Please wait ...", cy + 40, CYAN);

  char line[40];

  sprintf(line, "Total runtime(us): %lu", run_time);

  printCentered(line, cy + 60, YELLOW);

  delay(10000);

}

void setup() {

  Serial.begin(9600);

  TFT_display.begin();

  TFT_display.setRotation(1); // landscape

  TFT_display.fillScreen(BLACK);

  SCREEN_WIDTH = TFT_display.width();

  SCREEN_HEIGHT = TFT_display.height();

  randomSeed(analogRead(A0));

}

void loop() {

  unsigned long total_time;

  TFT_display.fillScreen(BLACK);

  total_time = show_total_time();

  show_end(total_time);

}

SƠ ĐỒ GIAO TIẾP ARDUINO VỚI TFT 2.8:

CODE GIAO TIẾP ARDUINO VỚI TFT 2.8:

/*

   Created by DIYables

   This example code is in the public domain

   Comprehensive graphics benchmark - tests most drawing functions

   and reports timing for each operation, both on the screen and

   on the Serial Monitor.

   Product page: https://diyables.io/tft-spi

   Credit: This example is based on the colligate_test example from the LCDWIKI library

*/

// =============================================

// Single include brings in the base class plus all driver classes.

// =============================================

#include <DIYables_TFT_SPI.h>

// =============================================

// Wiring (Arduino Uno / Nano)

// ---------------------------------------------

//   TFT module     Arduino Uno / Nano

//   ------------   ---------------------------------

//   VCC        ->  3.3V

//   GND        ->  GND

//   CS         ->  D10  (TFT_CS_PIN)

//   RESET      ->  D9   (TFT_RST_PIN)

//   DC / RS    ->  D8   (TFT_DC_PIN)

//   SDI / MOSI ->  D11  (hardware SPI MOSI)

//   SCK        ->  D13  (hardware SPI SCK)

//   LED        ->  3.3V (or any GPIO via initBacklight)

//   SDO / MISO ->  D12  (only needed when reading from display)

// =============================================

// =============================================

// SPI pin definitions (adjust for your board)

// =============================================

#define TFT_CS_PIN   10

#define TFT_DC_PIN   8

#define TFT_RST_PIN  9

// Panel resolution in native (portrait) orientation - change to match your module

#define TFT_WIDTH   320

#define TFT_HEIGHT  240

// MOSI and SCK use default hardware SPI pins

// =============================================

// Create display object (uncomment matching driver)

// =============================================

//DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);

// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);

DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);

// The tests run in landscape, so the screen size is filled in by setup()

uint16_t SCREEN_WIDTH;

uint16_t SCREEN_HEIGHT;

// Drawing area: everything between the header and the footer bar

#define TOP_Y     16

#define BOT_Y     (SCREEN_HEIGHT - 17)

// Color definitions (RGB565)

#define BLACK     DIYables_TFT_SPI::colorRGB(0, 0, 0)

#define WHITE     DIYables_TFT_SPI::colorRGB(255, 255, 255)

#define RED       DIYables_TFT_SPI::colorRGB(255, 0, 0)

#define GREEN     DIYables_TFT_SPI::colorRGB(0, 255, 0)

#define BLUE      DIYables_TFT_SPI::colorRGB(0, 0, 255)

#define CYAN      DIYables_TFT_SPI::colorRGB(0, 255, 255)

#define MAGENTA   DIYables_TFT_SPI::colorRGB(255, 0, 255)

#define YELLOW    DIYables_TFT_SPI::colorRGB(255, 255, 0)

#define ORANGE    DIYables_TFT_SPI::colorRGB(255, 165, 0)

// Print text horizontally centered on the screen

void printCentered(const char *text, int16_t y, uint16_t color) {

  int16_t x1, y1;

  uint16_t w, h;

  TFT_display.setTextColor(color);

  TFT_display.setTextSize(1);

  TFT_display.getTextBounds(text, 0, y, &x1, &y1, &w, &h);

  int16_t x = (SCREEN_WIDTH - (int16_t)w) / 2;

  if (x < 0) x = 0;

  TFT_display.setCursor(x, y);

  TFT_display.print(text);

}

// Plot one point of a curve, clipping values that run far off screen

// (tan and cot grow without bound near their asymptotes)

void plotCurve(int16_t x, float value, uint16_t color) {

  if (value > 30000.0 || value < -30000.0) return;

  int16_t y = SCREEN_HEIGHT / 2 - 1 + (int16_t)value;

  TFT_display.drawPixel(x, y, color);

}

// Display main surface with header/footer

unsigned long show_text(void) {

  unsigned long time_start = micros();

  TFT_display.fillRect(0, 0, SCREEN_WIDTH, 15, DIYables_TFT_SPI::colorRGB(32, 0, 255));

  printCentered("* DIYables SPI TFT LCD Display *", 3, GREEN);

  TFT_display.fillRect(0, SCREEN_HEIGHT - 15, SCREEN_WIDTH, 15,

                       DIYables_TFT_SPI::colorRGB(128, 128, 128));

  printCentered("<https://diyables.io/tft-spi>", SCREEN_HEIGHT - 11, WHITE);

  TFT_display.drawRect(0, 15, SCREEN_WIDTH, SCREEN_HEIGHT - 31, RED);

  return micros() - time_start;

}

// Display triangle functions (sin, cos, tan, cot)

unsigned long show_triangle_function(void) {

  uint16_t i;

  unsigned long time_start = micros();

  float amp = (BOT_Y - TOP_Y) / 2.0 - 2.0;      // fill the drawing area

  float step = 360.0 / (SCREEN_WIDTH - 2);      // one full period across the screen

  // Draw crosshairs

  TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1, TOP_Y, SCREEN_HEIGHT - 32, BLUE);

  TFT_display.drawFastHLine(1, SCREEN_HEIGHT / 2 - 1, SCREEN_WIDTH - 2, BLUE);

  for (i = 1; i <= (SCREEN_HEIGHT - 32) / 2 / 10; i++) {

    TFT_display.drawFastHLine(SCREEN_WIDTH / 2 - 3, SCREEN_HEIGHT / 2 - 1 - i * 10, 5, BLUE);

    TFT_display.drawFastHLine(SCREEN_WIDTH / 2 - 3, SCREEN_HEIGHT / 2 - 1 + i * 10, 5, BLUE);

  }

  for (i = 1; i <= (SCREEN_WIDTH - 2) / 2 / 10; i++) {

    TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1 - i * 10, SCREEN_HEIGHT / 2 - 3, 5, BLUE);

    TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1 + i * 10, SCREEN_HEIGHT / 2 - 3, 5, BLUE);

  }

  TFT_display.setTextSize(1);

  TFT_display.setTextColor(CYAN);

  TFT_display.setCursor(5, TOP_Y + 1);

  TFT_display.print(F("sin"));

  TFT_display.setTextColor(GREEN);

  TFT_display.setCursor(5, TOP_Y + 9);

  TFT_display.print(F("cos"));

  TFT_display.setTextColor(YELLOW);

  TFT_display.setCursor(5, TOP_Y + 17);

  TFT_display.print(F("tan"));

  TFT_display.setTextColor(RED);

  TFT_display.setCursor(5, TOP_Y + 25);

  TFT_display.print(F("cot"));

  for (i = 1; i < SCREEN_WIDTH - 1; i++) {

    float rad = radians(i * step);

    plotCurve(i, sin(rad) * amp, CYAN);

    plotCurve(i, cos(rad) * amp, GREEN);

    plotCurve(i, tan(rad) * 10.0, YELLOW);

    float t = tan(rad);

    if (t != 0.0) plotCurve(i, (1.0 / t) * 10.0, RED);

  }

  return micros() - time_start;

}

// Draw a moving sinewave. The previous trace is erased by recomputing the

// value one screen-width earlier, so no frame buffer is needed - that keeps

// this example runnable on boards with very little RAM, such as the Uno R3.

unsigned long show_sinewave(void) {

  unsigned long time_start = micros();

  uint16_t span = SCREEN_WIDTH - 2;

  uint32_t total = (uint32_t)span * 12;

  float amp = (BOT_Y - TOP_Y) / 2.0 - 2.0;

  float step = 720.0 / span;                    // two periods across the screen

  TFT_display.drawFastVLine(SCREEN_WIDTH / 2 - 1, TOP_Y, SCREEN_HEIGHT - 32, BLUE);

  TFT_display.drawFastHLine(1, SCREEN_HEIGHT / 2 - 1, SCREEN_WIDTH - 2, BLUE);

  for (uint32_t i = 0; i < total; i++) {

    uint16_t x = 1 + (i % span);

    // Erase the point drawn at this x one screen ago

    if (i >= span) {

      uint32_t prev = i - span;

      float decay = 1.0 - (float)prev / (float)total * 0.5;

      int16_t oldY = SCREEN_HEIGHT / 2 - 1 + (int16_t)(sin(radians(prev * step)) * amp * decay);

      // Keep the axes intact while erasing

      if (x == SCREEN_WIDTH / 2 - 1 || oldY == SCREEN_HEIGHT / 2 - 1) {

        TFT_display.drawPixel(x, oldY, BLUE);

      } else {

        TFT_display.drawPixel(x, oldY, BLACK);

      }

    }

    float decay = 1.0 - (float)i / (float)total * 0.5;

    int16_t y = SCREEN_HEIGHT / 2 - 1 + (int16_t)(sin(radians(i * step)) * amp * decay);

    TFT_display.drawPixel(x, y, DIYables_TFT_SPI::colorRGB(255, 64, 255));

  }

  return micros() - time_start;

}

// Draw some filled rectangles

unsigned long show_fill_rectangle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t side_len = (SCREEN_HEIGHT - 40) / 5;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * side_len) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * side_len) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillRect(x_spec + i * side_len, y_spec + i * side_len,

                         side_len, side_len, colors[i]);

    TFT_display.fillRect(x_spec + i * side_len, y_spec + (4 - i) * side_len,

                         side_len, side_len, colors[i]);

  }

  return micros() - time_start;

}

// Draw some filled round rectangles

unsigned long show_fill_round_rectangle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t side_len = (SCREEN_HEIGHT - 40) / 5;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * side_len) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * side_len) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillRoundRect(x_spec + i * side_len, y_spec + i * side_len,

                              side_len, side_len, 10, colors[i]);

    TFT_display.fillRoundRect(x_spec + i * side_len, y_spec + (4 - i) * side_len,

                              side_len, side_len, 10, colors[i]);

  }

  return micros() - time_start;

}

// Draw some filled circles

unsigned long show_fill_circle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t r_len = (SCREEN_HEIGHT - 40) / 5 / 2;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * r_len * 2) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * r_len * 2) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillCircle(x_spec + r_len + i * r_len * 2,

                           y_spec + r_len + i * r_len * 2, r_len, colors[i]);

    TFT_display.fillCircle(x_spec + r_len + i * r_len * 2,

                           y_spec + (5 - i) * r_len * 2 - r_len, r_len, colors[i]);

  }

  return micros() - time_start;

}

// Draw some filled triangles

unsigned long show_fill_triangle(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t h_len = (SCREEN_HEIGHT - 40) / 5;

  uint16_t side_len = (h_len * 115) / 100;

  uint16_t x_spec = (SCREEN_WIDTH - 5 * side_len) / 2;

  uint16_t y_spec = (SCREEN_HEIGHT - 5 * h_len) / 2;

  uint16_t colors[] = { MAGENTA, RED, GREEN, BLUE, YELLOW };

  for (i = 0; i < 5; i++) {

    TFT_display.fillTriangle(

      x_spec + i * side_len, y_spec + (i + 1) * h_len,

      x_spec + side_len / 2 + i * side_len, y_spec + i * h_len,

      x_spec + (i + 1) * side_len, y_spec + (i + 1) * h_len, colors[i]);

    TFT_display.fillTriangle(

      x_spec + i * side_len, y_spec + (5 - i) * h_len,

      x_spec + side_len / 2 + i * side_len, y_spec + (4 - i) * h_len,

      x_spec + (i + 1) * side_len, y_spec + (5 - i) * h_len, colors[i]);

  }

  return micros() - time_start;

}

// Draw grid lines pattern

unsigned long show_grid_lines(void) {

  uint16_t i;

  unsigned long time_start = micros();

  // Sweep the far end of each line across the full width as i walks down

  float k = (float)(SCREEN_WIDTH - 3) / (float)(BOT_Y - TOP_Y);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(1, i, 1 + (i - TOP_Y) * k, BOT_Y, RED);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(SCREEN_WIDTH - 2, i, SCREEN_WIDTH - 2 - (i - TOP_Y) * k, TOP_Y, RED);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(1, i, 1 + (i - TOP_Y) * k, TOP_Y, CYAN);

  for (i = TOP_Y; i < BOT_Y; i += 5)

    TFT_display.drawLine(SCREEN_WIDTH - 2, i, SCREEN_WIDTH - 2 - (i - TOP_Y) * k, BOT_Y, CYAN);

  return micros() - time_start;

}

// Draw some random pixels

unsigned long show_random_pixels(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 10000; i++) {

    TFT_display.drawPixel(

      2 + random(SCREEN_WIDTH - 4),

      17 + random(SCREEN_HEIGHT - 34),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random lines

unsigned long show_random_lines(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 300; i++) {

    TFT_display.drawLine(

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random rectangles

unsigned long show_random_rectangles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 150; i++) {

    int16_t x1 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y1 = 17 + random(SCREEN_HEIGHT - 34);

    int16_t x2 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y2 = 17 + random(SCREEN_HEIGHT - 34);

    TFT_display.drawRect(min(x1, x2), min(y1, y2), abs(x2 - x1), abs(y2 - y1),

                         DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random round rectangles

unsigned long show_random_round_rectangles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 150; i++) {

    int16_t x1 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y1 = 17 + random(SCREEN_HEIGHT - 34);

    int16_t x2 = 2 + random(SCREEN_WIDTH - 4);

    int16_t y2 = 17 + random(SCREEN_HEIGHT - 34);

    int16_t w = abs(x2 - x1);

    int16_t h = abs(y2 - y1);

    // A round rectangle needs room for the corner radius

    if (w < 12 || h < 12) continue;

    TFT_display.drawRoundRect(min(x1, x2), min(y1, y2), w, h, 5,

                              DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random circles

unsigned long show_random_circles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  uint16_t r_max = (SCREEN_HEIGHT - 34) / 6;

  for (i = 0; i < 150; i++) {

    TFT_display.drawCircle(

      2 + r_max + random(SCREEN_WIDTH - 4 - r_max * 2),

      17 + r_max + random(SCREEN_HEIGHT - 34 - r_max * 2),

      random(r_max),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Draw some random triangles

unsigned long show_random_triangles(void) {

  uint16_t i;

  unsigned long time_start = micros();

  for (i = 0; i < 150; i++) {

    TFT_display.drawTriangle(

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      2 + random(SCREEN_WIDTH - 4), 17 + random(SCREEN_HEIGHT - 34),

      DIYables_TFT_SPI::colorRGB(random(255), random(255), random(255)));

  }

  return micros() - time_start;

}

// Clear the drawing area

void clear_screen(void) {

  delay(2000);

  TFT_display.fillRect(1, 16, SCREEN_WIDTH - 2, SCREEN_HEIGHT - 32, BLACK);

}

// Function pointer array and labels

typedef unsigned long (*ShowFunc)(void);

ShowFunc show_function[] = {

  show_text,

  show_triangle_function,

  show_sinewave,

  show_fill_rectangle,

  show_fill_round_rectangle,

  show_fill_circle,

  show_fill_triangle,

  show_grid_lines,

  show_random_pixels,

  show_random_lines,

  show_random_rectangles,

  show_random_round_rectangles,

  show_random_circles,

  show_random_triangles,

};

#define NUM_TESTS 14

#define LABEL_LEN 32   // 30 visible chars + terminator, rounded up

// Kept in flash so the sketch still fits the Uno R3's 2 KB of RAM

const char show_str[NUM_TESTS][LABEL_LEN] PROGMEM = {

  "show text                    :",

  "show triangle function       :",

  "show sinewave                :",

  "show fill rectangle          :",

  "show fill round rectangle    :",

  "show fill circle             :",

  "show fill triangle           :",

  "show grid lines              :",

  "show random pixels           :",

  "show random lines            :",

  "show random rectangles       :",

  "show random round rectangles :",

  "show random circles          :",

  "show random triangles        :"

};

// Run all tests and display timing results

unsigned long show_total_time(void) {

  uint16_t i;

  unsigned long buf[NUM_TESTS];

  unsigned long time_start = micros();

  char strbuf[LABEL_LEN];

  for (i = 0; i < NUM_TESTS; i++) {

    buf[i] = show_function[i]();

    clear_screen();

  }

  int16_t x_off = (SCREEN_WIDTH - 260) / 2;

  if (x_off < 2) x_off = 2;

  int16_t y_off = (SCREEN_HEIGHT - NUM_TESTS * 10) / 2;

  if (y_off < TOP_Y + 2) y_off = TOP_Y + 2;

  for (i = 0; i < NUM_TESTS; i++) {

    strcpy_P(strbuf, show_str[i]);

    TFT_display.setTextColor(ORANGE);

    TFT_display.setTextSize(1);

    TFT_display.setCursor(x_off, y_off + i * 10);

    TFT_display.print(strbuf);

    TFT_display.setTextColor(GREEN);

    TFT_display.setCursor(x_off + 185, y_off + i * 10);

    TFT_display.print(buf[i]);

    // Also print to Serial for easy comparison

    Serial.print(strbuf);

    Serial.print(F(" "));

    Serial.print(buf[i]);

    Serial.println(F(" us"));

  }

  // Print total

  unsigned long total = 0;

  for (i = 0; i < NUM_TESTS; i++) total += buf[i];

  Serial.print(F("Total (tests only):            "));

  Serial.print(total);

  Serial.println(F(" us"));

  Serial.println();

  delay(5000);

  return micros() - time_start;

}

// Display ending screen with total time

void show_end(unsigned long run_time) {

  TFT_display.fillScreen(CYAN);

  int16_t bw = 240, bh = 120;

  if (bw > SCREEN_WIDTH - 10) bw = SCREEN_WIDTH - 10;

  TFT_display.fillRoundRect((SCREEN_WIDTH - bw) / 2, (SCREEN_HEIGHT - bh) / 2,

                            bw, bh, 5, RED);

  int16_t cy = (SCREEN_HEIGHT - bh) / 2 + 20;

  printCentered("Running over!", cy, CYAN);

  printCentered("That's ok!", cy + 10, CYAN);

  printCentered("After a few seconds,", cy + 20, CYAN);

  printCentered("it will restart.", cy + 30, CYAN);

  printCentered("Please wait ...", cy + 40, CYAN);

  char line[40];

  sprintf(line, "Total runtime(us): %lu", run_time);

  printCentered(line, cy + 60, YELLOW);

  delay(10000);

}

void setup() {

  Serial.begin(9600);

  TFT_display.begin();

  TFT_display.setRotation(1); // landscape

  TFT_display.fillScreen(BLACK);

  SCREEN_WIDTH = TFT_display.width();

  SCREEN_HEIGHT = TFT_display.height();

  randomSeed(analogRead(A0));

}

void loop() {

  unsigned long total_time;

  TFT_display.fillScreen(BLACK);

  total_time = show_total_time();

  show_end(total_time);

}
