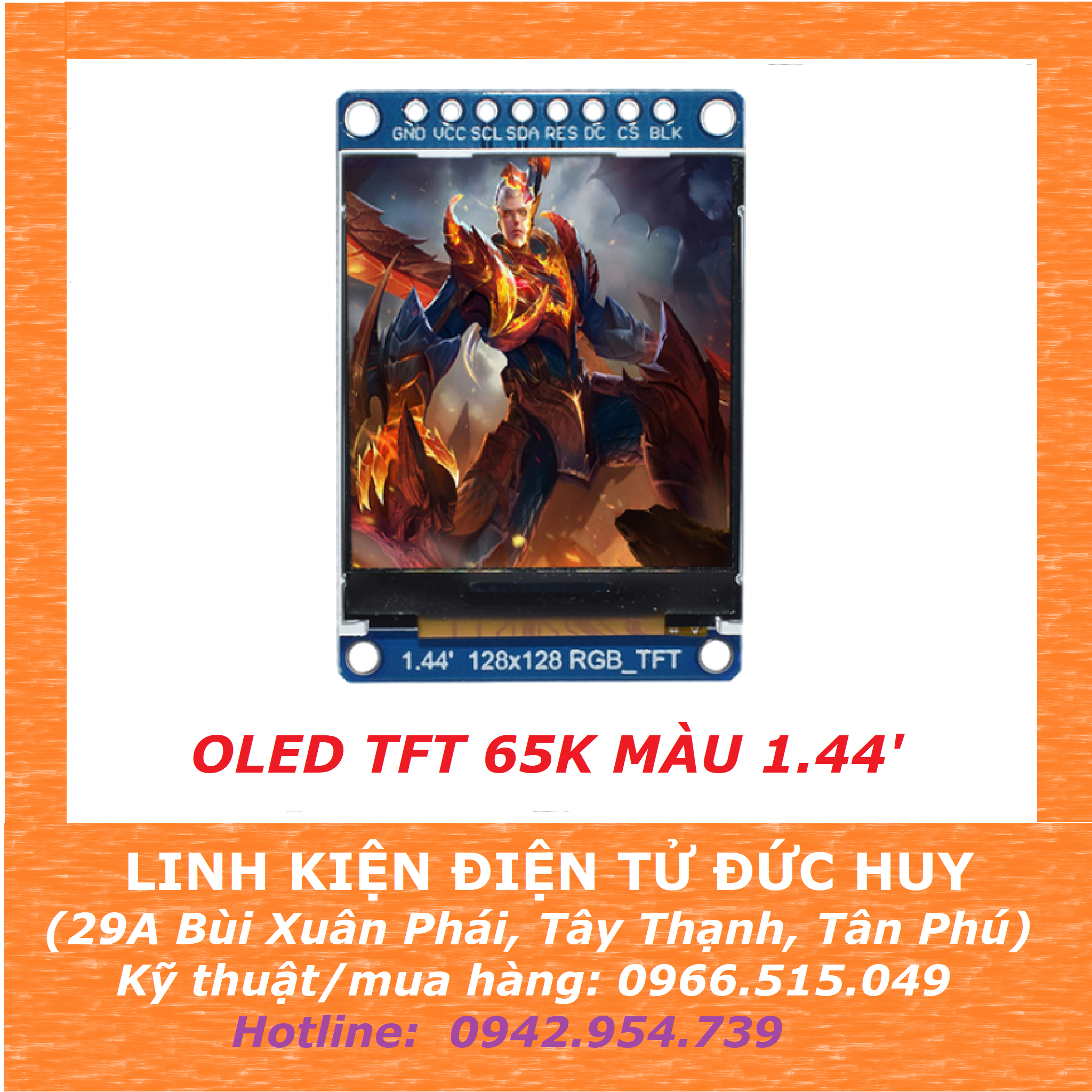

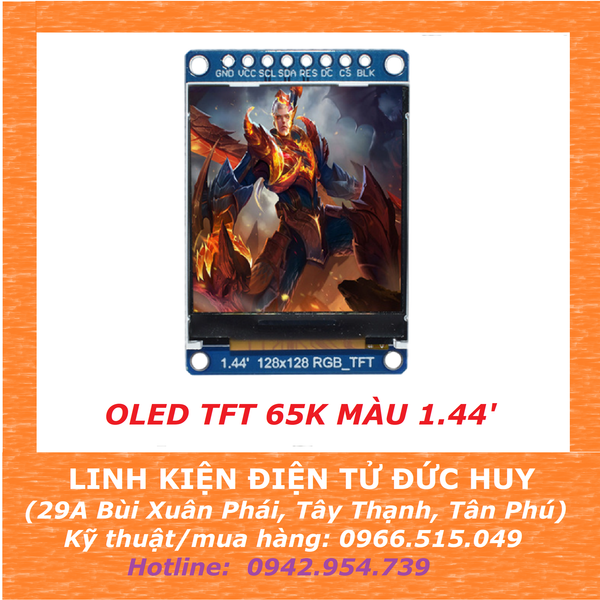

MÀN HÌNH OLED TFT, 65K MÀU, 1.44 INCH

Mã sản phẩm: K2_274
THÔNG SỐ KỸ THUÂTTrình điều khiển: ST7735Giao diện: SPIMàu hiển thị: 65K màuĐộ phân giải: 128x128Đèn nền: LEDĐiện áp hoạt động: 3.3V/5VMÔ TẢ CHÂN VCC  3.3V/5V GNDGroundSDASerial Data LineSCLSerial Clock LineCSChip selection, low activeDCData/Command selection (high for data, low for command)RSTReset, low activeVIDEO TEST SẢN PHẨMCÁCH KẾT NỐI OLED - ARDUINOGND - GNDVCC -...
87,000₫
Hàng còn: 6
Số lượng

1

Thêm vào giỏ Mua ngay

Dịch vụ & Khuyến mãi

Giao miễn phí chuyển phát nhanh trong nội thành TPHCM đối với đơn hàng trên 1 triệu đồng

Giảm 5k cho đơn hàng trên 300k đồng

Giảm 10k cho đơn hàng trên 500k đồng

Giảm 15k hoặc freeship chuyển phát nhanh cho đơn hàng trên 1tr đồng

Giảm 25.000đ hoặc freeship cho đơn hàng trên 2tr đồng.

Chi tiết sản phẩm

THÔNG SỐ KỸ THUÂT

  • Trình điều khiển: ST7735
  • Giao diện: SPI
  • Màu hiển thị: 65K màu
  • Độ phân giải: 128x128
  • Đèn nền: LED
  • Điện áp hoạt động: 3.3V/5V
MÔ TẢ CHÂN
VCC  3.3V/5V
GNDGround
SDASerial Data Line
SCLSerial Clock Line
CSChip selection, low active
DCData/Command selection (high for data, low for command)
RSTReset, low active

VIDEO TEST SẢN PHẨM

CÁCH KẾT NỐI OLED - ARDUINO

GND - GND

VCC - 5V

SCL - D13

SDA - D11

RESET - D9

DC - D8

CS - D10

BLK - 3.3V



CODE TEST OLED 1.44INCH

#include <Adafruit_GFX.h>    // Core graphics library

#include <Adafruit_ST7735.h> // Hardware-specific library for ST7735

#include <SPI.h>

  #define TFT_CS        10

  #define TFT_RST        9

  #define TFT_DC         8

Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);

float p = 3.1415926;

void setup(void) {

  Serial.begin(9600);

  Serial.print(F("Hello! ST77xx TFT Test"));

  tft.initR(INITR_144GREENTAB); // Init ST7735R chip, green tab

  Serial.println(F("Initialized"));

  uint16_t time = millis();

  tft.fillScreen(ST77XX_BLACK);

  time = millis() - time;

  Serial.println(time, DEC);

  delay(500);

  tft.fillScreen(ST77XX_BLACK);

  tft.setTextColor(ST77XX_BLACK);

  tft.println("");

  tft.setTextColor(ST77XX_GREEN);

  tft.setTextSize(1);

  tft.println("    DIEN TU DUC HUY");

  tft.setTextColor(ST77XX_BLACK);

  tft.println("");

  tft.setTextColor(ST77XX_YELLOW);

  tft.setTextSize(1);

  tft.println("  XIN CHAO QUY KHACH");

  tft.setTextColor(ST77XX_BLACK);

  tft.println("");

  tft.setTextColor(ST77XX_MAGENTA);

  tft.setTextSize(1);

  tft.println("HAN HANH DUOC PHUC VU");

  delay(6000);

  tftPrintTest();

  delay(4000);

  tft.drawPixel(tft.width()/2, tft.height()/2, ST77XX_GREEN);

  delay(500);

  testlines(ST77XX_YELLOW);

  delay(500);

  testfastlines(ST77XX_RED, ST77XX_BLUE);

  delay(500);

  testdrawrects(ST77XX_GREEN);

  delay(500);

  testfillrects(ST77XX_YELLOW, ST77XX_MAGENTA);

  delay(500);

  tft.fillScreen(ST77XX_BLACK);

  testfillcircles(10, ST77XX_BLUE);

  testdrawcircles(10, ST77XX_WHITE);

  delay(500);

  testroundrects();

  delay(500);

  testtriangles();

  delay(500);

  mediabuttons();

  delay(500);

  Serial.println("done");

  delay(1000);

}

void loop() {

  tft.invertDisplay(true);

  delay(500);

  tft.invertDisplay(false);

  delay(500);

}

void testlines(uint16_t color) {

  tft.fillScreen(ST77XX_BLACK);

  for (int16_t x=0; x < tft.width(); x+=6) {

    tft.drawLine(0, 0, x, tft.height()-1, color);

    delay(0);

  }

  for (int16_t y=0; y < tft.height(); y+=6) {

    tft.drawLine(0, 0, tft.width()-1, y, color);

    delay(0);

  }

  tft.fillScreen(ST77XX_BLACK);

  for (int16_t x=0; x < tft.width(); x+=6) {

    tft.drawLine(tft.width()-1, 0, x, tft.height()-1, color);

    delay(0);

  }

  for (int16_t y=0; y < tft.height(); y+=6) {

    tft.drawLine(tft.width()-1, 0, 0, y, color);

    delay(0);

  }



  tft.fillScreen(ST77XX_BLACK);

  for (int16_t x=0; x < tft.width(); x+=6) {

    tft.drawLine(0, tft.height()-1, x, 0, color);

    delay(0);

  }

  for (int16_t y=0; y < tft.height(); y+=6) {

    tft.drawLine(0, tft.height()-1, tft.width()-1, y, color);

    delay(0);

  }



  tft.fillScreen(ST77XX_BLACK);

  for (int16_t x=0; x < tft.width(); x+=6) {

    tft.drawLine(tft.width()-1, tft.height()-1, x, 0, color);

    delay(0);

  }

  for (int16_t y=0; y < tft.height(); y+=6) {

    tft.drawLine(tft.width()-1, tft.height()-1, 0, y, color);

    delay(0);

  }

}



void testdrawtext(char *text, uint16_t color) {

  tft.setCursor(0, 0);

  tft.setTextColor(color);

  tft.setTextWrap(true);

  tft.print(text);

}



void testfastlines(uint16_t color1, uint16_t color2) {

  tft.fillScreen(ST77XX_BLACK);

  for (int16_t y=0; y < tft.height(); y+=5) {

    tft.drawFastHLine(0, y, tft.width(), color1);

  }

  for (int16_t x=0; x < tft.width(); x+=5) {

    tft.drawFastVLine(x, 0, tft.height(), color2);

  }

}



void testdrawrects(uint16_t color) {

  tft.fillScreen(ST77XX_BLACK);

  for (int16_t x=0; x < tft.width(); x+=6) {

    tft.drawRect(tft.width()/2 -x/2, tft.height()/2 -x/2 , x, x, color);

  }

}



void testfillrects(uint16_t color1, uint16_t color2) {

  tft.fillScreen(ST77XX_BLACK);

  for (int16_t x=tft.width()-1; x > 6; x-=6) {

    tft.fillRect(tft.width()/2 -x/2, tft.height()/2 -x/2 , x, x, color1);

    tft.drawRect(tft.width()/2 -x/2, tft.height()/2 -x/2 , x, x, color2);

  }

}



void testfillcircles(uint8_t radius, uint16_t color) {

  for (int16_t x=radius; x < tft.width(); x+=radius*2) {

    for (int16_t y=radius; y < tft.height(); y+=radius*2) {

      tft.fillCircle(x, y, radius, color);

    }

  }

}



void testdrawcircles(uint8_t radius, uint16_t color) {

  for (int16_t x=0; x < tft.width()+radius; x+=radius*2) {

    for (int16_t y=0; y < tft.height()+radius; y+=radius*2) {

      tft.drawCircle(x, y, radius, color);

    }

  }

}



void testtriangles() {

  tft.fillScreen(ST77XX_BLACK);

  uint16_t color = 0xF800;

  int t;

  int w = tft.width()/2;

  int x = tft.height()-1;

  int y = 0;

  int z = tft.width();

  for(t = 0 ; t <= 15; t++) {

    tft.drawTriangle(w, y, y, x, z, x, color);

    x-=4;

    y+=4;

    z-=4;

    color+=100;

  }

}



void testroundrects() {

  tft.fillScreen(ST77XX_BLACK);

  uint16_t color = 100;

  int i;

  int t;

  for(t = 0 ; t <= 4; t+=1) {

    int x = 0;

    int y = 0;

    int w = tft.width()-2;

    int h = tft.height()-2;

    for(i = 0 ; i <= 16; i+=1) {

      tft.drawRoundRect(x, y, w, h, 5, color);

      x+=2;

      y+=3;

      w-=4;

      h-=6;

      color+=1100;

    }

    color+=100;

  }

}



void tftPrintTest() {

  tft.setTextWrap(false);

  tft.fillScreen(ST77XX_BLACK);

  tft.setCursor(0, 30);

  tft.setTextColor(ST77XX_RED);

  tft.setTextSize(2);

  tft.println("Hello World!");

  tft.setTextColor(ST77XX_YELLOW);

  tft.setTextSize(1);

  tft.println("Hello World!");

  tft.setTextColor(ST77XX_GREEN);

  tft.setTextSize(1);

  tft.println("Hello World!");

  tft.setTextColor(ST77XX_BLUE);

  tft.setTextSize(1);

  tft.print(1234.567);

  delay(1500);

  tft.setCursor(0, 0);

  tft.fillScreen(ST77XX_BLACK);

  tft.setTextColor(ST77XX_WHITE);

  tft.setTextSize(0);

  tft.println("Hello World!");

  tft.setTextSize(1);

  tft.setTextColor(ST77XX_GREEN);

  tft.print(p, 6);

  tft.println(" Want pi?");

  tft.println(" ");

  tft.print(8675309, HEX); // print 8,675,309 out in HEX!

  tft.println(" Print HEX!");

  tft.println(" ");

  tft.setTextColor(ST77XX_WHITE);

  tft.println("Sketch has been");

  tft.println("running for: ");

  tft.setTextColor(ST77XX_MAGENTA);

  tft.print(millis() / 1000);

  tft.setTextColor(ST77XX_WHITE);

  tft.print(" seconds.");

}



void mediabuttons() {

  // play

  tft.fillScreen(ST77XX_BLACK);

  tft.fillRoundRect(25, 10, 78, 60, 8, ST77XX_WHITE);

  tft.fillTriangle(42, 20, 42, 60, 90, 40, ST77XX_RED);

  delay(500);

  // pause

  tft.fillRoundRect(25, 90, 78, 60, 8, ST77XX_WHITE);

  tft.fillRoundRect(39, 98, 20, 45, 5, ST77XX_GREEN);

  tft.fillRoundRect(69, 98, 20, 45, 5, ST77XX_GREEN);

  delay(500);

  // play color

  tft.fillTriangle(42, 20, 42, 60, 90, 40, ST77XX_BLUE);

  delay(50);

  // pause color

  tft.fillRoundRect(39, 98, 20, 45, 5, ST77XX_RED);

  tft.fillRoundRect(69, 98, 20, 45, 5, ST77XX_RED);

  // play color

  tft.fillTriangle(42, 20, 42, 60, 90, 40, ST77XX_GREEN);

}
