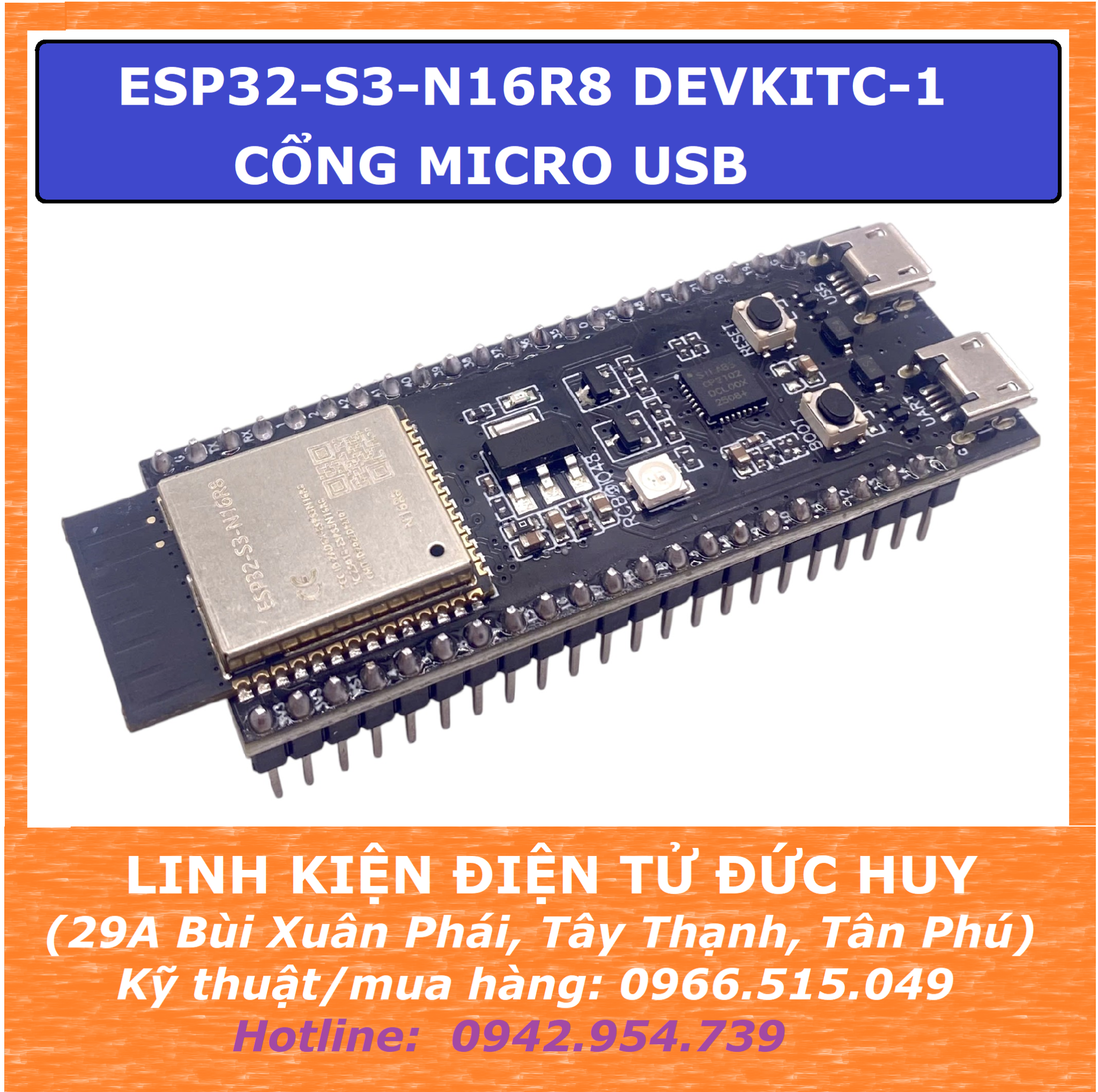

ESP32 S3 N16R8 DEVKITC 1 CỔNG MICRO USB

·Supports IEEE 802.11 b/g/n protocol
·Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz frequency band. Supports 1T1R mode with a data rate of up to 150 Mbps · Wireless Multimedia (WMM)
·Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU) · Immediate Block ACK
·Fragmentation/reassembly - Beacon automatic monitoring (hardware TSF)
. 4 × Virtual Wi Fi interface
·At the same time, it supports the Station mode, SoftAP mode and Station+SoftAP Promiscuous mode of the infrastructure network (lnstructure BsS)
Please note that when ESP32-S3 is scanned in Station mode, the SoftAP channel will change simultaneously
. Antenna Diversity
802.11 mc FTM
Bluetooth
. Low power Bluetooth LE: Bluetooth 5, Bluetooth mesh
·High power mode (20 dBm)
·Supports speeds of 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps · Advertising extensions
. Multiple Advertisement Sets · Channel Selection Algorithm # 2 Wi Fi coexists with Bluetooth, sharing the same antenna
CPU and storage
Xtensa
32-bit LX7 dual core processor with up to 240MHz main frequency
CoreMarkR score:
-Single core, main frequency 240 MHz: 613.86 CoreMark; 2.56CoreMark/MHz
-Dual core, main frequency 240 MHz: 1181.60 CoreMark; 4.92 CoreMark/MHz
128 bit data bus bit width, supporting SIMD instructions 384 KB ROM
512 KB SRAM 16 KB RTC SRAM
SPI, Dual SPL, Quad SPIl, 0ctal SPI, QPI, OPI interfaces with multiple external flash and off chip RAM
