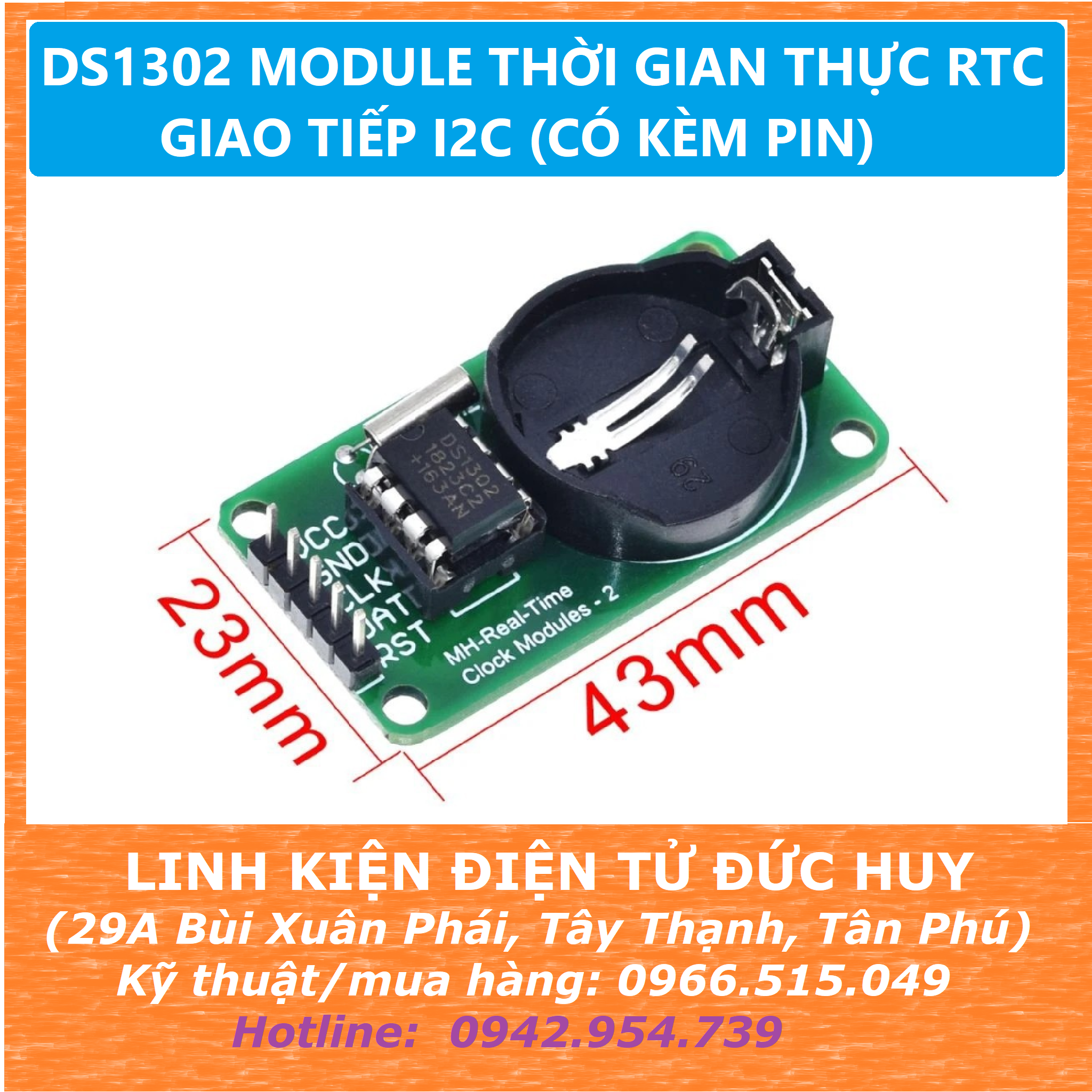

DS1302 module thời gian thực RTC (kèm pin)

CODE ARDUINO ĐỌC DỮ LIỆU RTC DS1302:

/*
  This code initializes and sets up the RTC DS1302 module and prints the current date and
  time on the serial monitor. It also checks if the RTC is running and has a valid date and time.
  If not, it sets the RTC to the compile time.
  Due to the time required for compilation and upload, there may be a time difference.

  Board: Arduino Uno R3 (or R4)

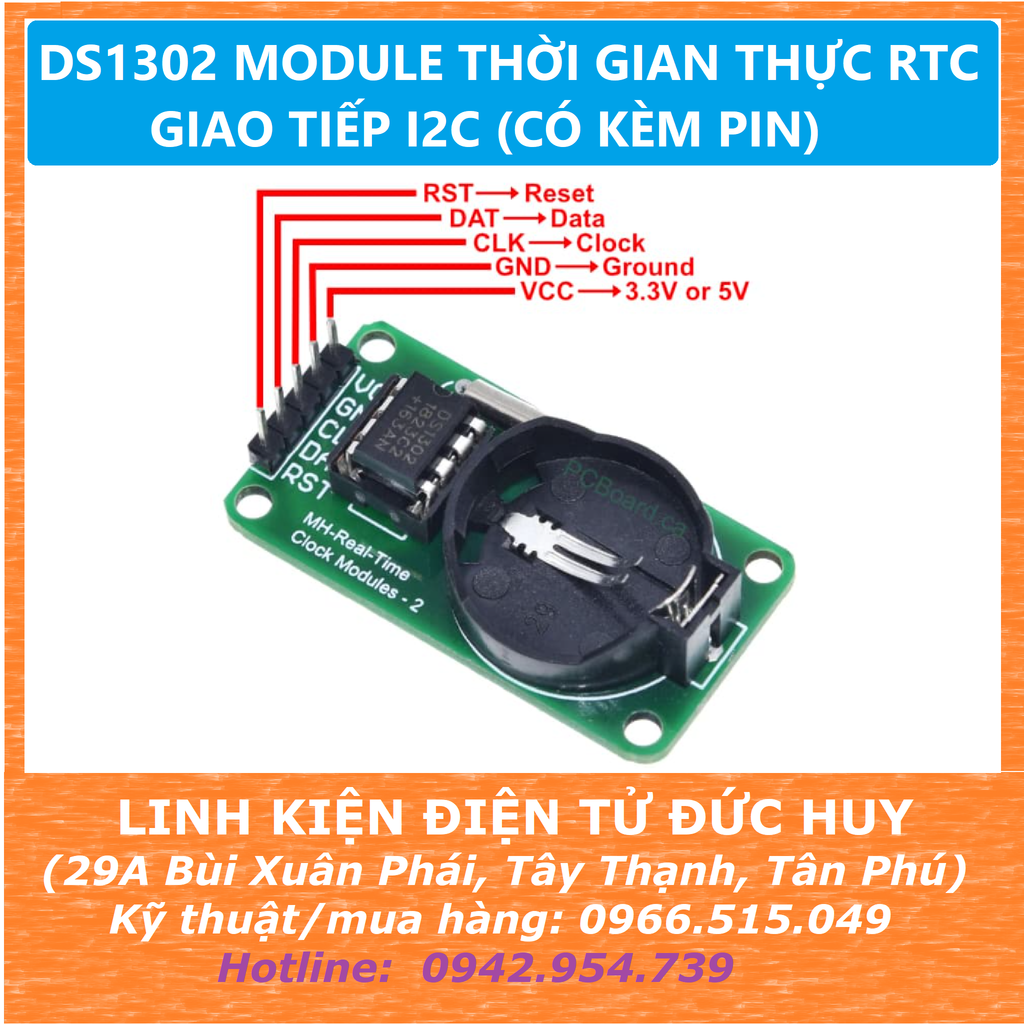

  Component: Real Time Clock Module  (DS1302)

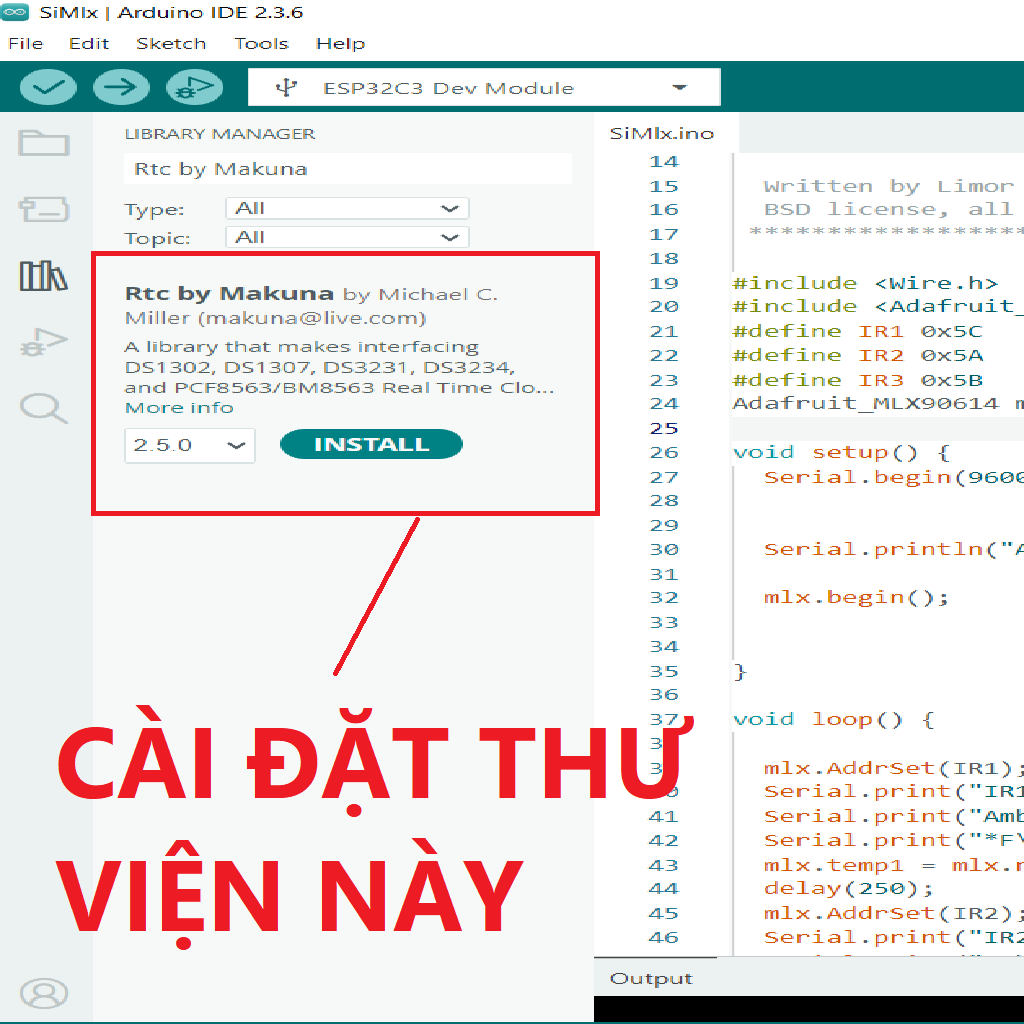

  Library: https://github.com/Makuna/Rtc (Rtc by Makuna)
*/

#include <ThreeWire.h>
#include <RtcDS1302.h>

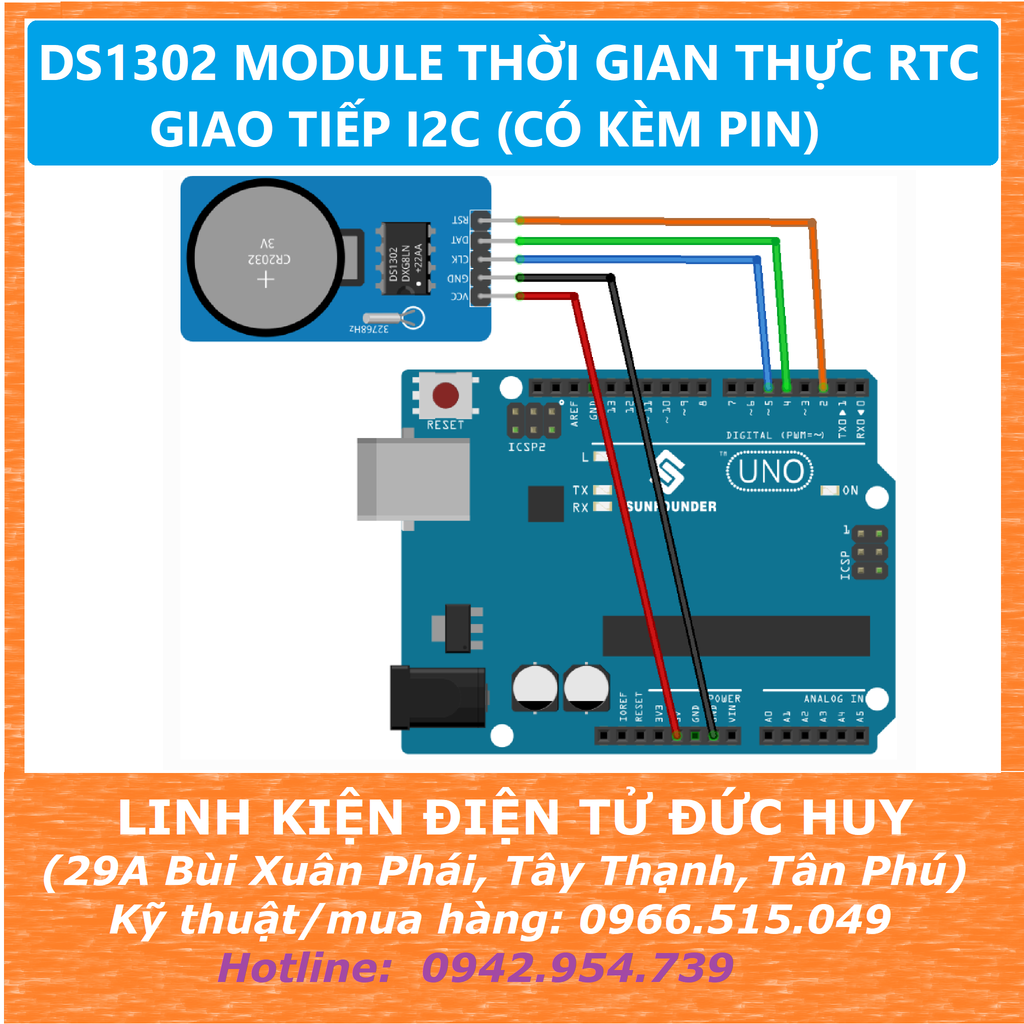

const int IO = 4;    // DAT
const int SCLK = 5;  // CLK
const int CE = 2;    // RST

ThreeWire myWire(4, 5, 2);  // IO, SCLK, CE
RtcDS1302<ThreeWire> Rtc(myWire);

void setup() {
  Serial.begin(9600);

  Serial.print("compiled: ");
  Serial.print(__DATE__);
  Serial.println(__TIME__);

  Rtc.Begin();

  RtcDateTime compiled = RtcDateTime(__DATE__, __TIME__);
  printDateTime(compiled);
  Serial.println();

  if (!Rtc.IsDateTimeValid()) {
    // Common Causes:
    //    1) first time you ran and the device wasn't running yet
    //    2) the battery on the device is low or even missing

    Serial.println("RTC lost confidence in the DateTime!");
    Rtc.SetDateTime(compiled);
  }

  if (Rtc.GetIsWriteProtected()) {
    Serial.println("RTC was write protected, enabling writing now");
    Rtc.SetIsWriteProtected(false);
  }

  if (!Rtc.GetIsRunning()) {
    Serial.println("RTC was not actively running, starting now");
    Rtc.SetIsRunning(true);
  }

  RtcDateTime now = Rtc.GetDateTime();
  if (now < compiled) {
    Serial.println("RTC is older than compile time!  (Updating DateTime)");
    Rtc.SetDateTime(compiled);
  } else if (now > compiled) {
    Serial.println("RTC is newer than compile time. (this is expected)");
  } else if (now == compiled) {
    Serial.println("RTC is the same as compile time! (not expected but all is fine)");
  }
}

void loop() {
  RtcDateTime now = Rtc.GetDateTime();

  printDateTime(now);
  Serial.println();

  if (!now.IsValid()) {
    // Common Causes:
    //    1) the battery on the device is low or even missing and the power line was disconnected
    Serial.println("RTC lost confidence in the DateTime!");
  }

  delay(5000);  // five seconds
}

#define countof(a) (sizeof(a) / sizeof(a[0]))

void printDateTime(const RtcDateTime& dt) {
  char datestring[20];

  snprintf_P(datestring,
             countof(datestring),
             PSTR("%02u/%02u/%04u %02u:%02u:%02u"),
             dt.Month(),
             dt.Day(),
             dt.Year(),
             dt.Hour(),
             dt.Minute(),
             dt.Second());
  Serial.print(datestring);
}
